The window, status bar, and menus

Copperline opens a single window: the emulated display presented at a TV-like 4:3 aspect ratio, above a status bar with the machine’s controls. The window scales continuously when resized.

Keyboard shortcuts¶

The app shortcut modifier is Cmd on macOS and Alt on Linux/Windows.

Host modifiers that are passed through to the emulated keyboard map onto the Amiga keyboard: Alt becomes Amiga Alt, Cmd/Super becomes the left/right Amiga keys, and left Ctrl becomes Amiga Ctrl, so Ctrl+Amiga+Amiga is typed naturally. The Amiga keyboard has no right Ctrl, so host right Ctrl also acts as the right Amiga key -- handy on PC/laptop keyboards that lack a right Super/Win key.

All other keys are sent to the emulated machine through the real path: a bit-timed keyboard-MCU model clocks each transition into CIA-A’s serial register over the emulated KCLK/KDAT lines, with the real handshake, power-up stream, and recovery protocol -- so even software that talks to the keyboard hardware directly behaves. Ctrl+Amiga+Amiga runs the authentic reset protocol (reset warning, then KCLK held low), so the reboot lands a fraction of a second after the chord, as on real hardware.

Status bar¶

The status bar (44 pixels below the display) holds, left to right (it can be hidden entirely with Cmd+Shift+F / Alt+Shift+F or Video Settings > Status Bar):

• LED block. PWR and FDD always; a green HDD activity LED on machines with a hard-disk controller (Gayle or A4000 IDE, or any SCSI adapter) or a host-folder filesystem mount ([[filesys]]), lit while either is accessed; a blue CD activity LED on CDTV/CD32 that lights while the drive reads data or plays CD audio (on a machine whose CD drive is a SCSI CD-ROM unit, the LED shows CD-DA playback; its data reads ride the HDD LED with the rest of the SCSI bus). A small digital counter shows the current floppy track. The PWR LED is lit whenever the machine is powered, driven by the guest’s /LED line the way it drives the LED on an A500 rev 6 or later board: full brightness while the line is engaged (Paula’s analogue filter on), dimmed -- not extinguished -- once the software releases it. It follows the pin itself, so the Audio Filter menu override changes what you hear, never the LED.

• Per-drive floppy controls. Every connected drive gets a disk button (marked with the drive number) that opens a file dialog -- multi-select several images to queue a swap playlist for that drive -- plus a swap button that cycles to the next queued disk and an eject button. Swap and eject grey out when there is nothing to swap to or eject. With three or four drives the clusters stack two-up. A bay driving a physical floppy drive keeps its numbered disk button, so you can see the drive is there, but loading, swapping and ejecting do nothing for it -- the disk is in a real drive, and changing it is done by hand (see Physical floppy drives).

• CD controls on machines with a CD drive (CDTV, CD32, or a SCSI CD-ROM unit): a CD button that loads (or swaps) a CD image (.cue/.iso/.chd) with the proper media-change notification, and a CD eject button. These do not appear on machines without a CD drive.

• Joystick toggle (just left of the volume control): a gamepad or keyboard icon showing which source drives the joystick port. Click it to flip between gamepad-only and keyboard joystick emulation; see Controller ports.

• Keyboard toggle (just left of the joystick toggle): a small keyboard icon, lit while the on-screen Amiga keyboard is up. Click it to show or hide it (see On-screen keyboard).

• Volume slider: drag, or scroll the mouse wheel over it for 5% steps.

• Hamburger menu button: opens the pop-up menu (below).

• Camera button: saves a screenshot (same as Cmd+S on macOS or Alt+S on Linux/Windows).

• Pause / power / reboot buttons. Pause freezes emulation while staying powered; power cold-boots (reinitialising RAM with the Memory page’s Power-on fill policy) or powers off back to the test screen; reboot is a warm reset.

On-screen keyboard¶

The keyboard button in the status bar, or Input Settings > On-Screen Keyboard, draws an Amiga keyboard in a strip between the display and the status bar. The window grows to make room for it: the picture keeps its size, the canvas gets taller, and hiding the keyboard gives the height back. A window you have resized yourself keeps its size, and the display reflows into it as usual.

It is an A600 -- the one Amiga keyboard with no numeric keypad, so the whole machine fits the window’s width at a usable cap size. Clicking a cap sends that key’s rawkey to the emulated keyboard MCU over the same authentic serial protocol a host keystroke uses, and is recorded the same way, so on-screen keys are captured by --record-input and replay from the resulting --script file. The two keyboards are independent holders of the same key: pressing a cap the host keyboard is already holding down changes nothing for the machine, and the key comes up only when the last of the two lets go.

The keyboard is the way to reach the keys a host keyboard has no equivalent of -- Help, both Amiga keys, and the #/~ key beside Return -- and the way to drive a session entirely with the mouse.

• Qualifiers latch. A mouse has one button, so Ctrl, both Shifts, both Alts and both Amiga keys stay down when you click them: click one and it is held for the next keystroke, then released with it. Click it twice in quick succession to lock it down until you click it again; click a locked one to let it go. Press and hold one instead, and it behaves like the real key, coming up when the button does. A latched qualifier is drawn with an orange ring, a locked one filled orange.

• Ctrl+Amiga+Amiga is typed by latching the three, as any other chord is. The moment the chord completes, the keyboard lets go of all three -- the MCU’s reset protocol is already running, and qualifiers still held would be reported held again through the power-up stream.

• Caps Lock carries a lamp in the corner of its cap, driven by the keyboard MCU itself rather than by the clicks, so it follows a save-state load or a guest that toggles the key in software.

• UK/US legends. The chip marked UK/US in the cursor notch swaps the five caps a US A600 prints differently (2, 3, ', and the two keys a US machine ships blank). It changes what the caps say, not what they send: the guest’s own keymap decides that.

• The X chip above it puts the keyboard away, the same as the status bar button. It sits in the slot farthest from the cursor keys, so a missed arrow cannot fold the keyboard away mid-game.

Performance overlay¶

Cmd+P (macOS) / Alt+P, Video Settings > Performance, or [display] perf_overlay = true shows a live emulation-performance readout in the top-right corner of the display, one line per data point at the menu’s font size (it follows Menu Size), refreshed twice a second:

Copperline never skips frames to keep pace: when the host cannot sustain real time the machine slows down (fps and the speed factor fall below nominal while host sits near 100%), and only a stall beyond the pacer’s catch-up limit drops emulated time, counted by slip. Under Warp Speed the presentation shows one frame per burst, but every emulated frame is still computed.

Like the transient message overlay, the readout is painted into the presentation only: screenshots, frame dumps, and recordings never include it. While a video recording is running the block steps below the REC badge. COPPERLINE_PERF_OVERLAY=1|0 overrides the config for a single run, and --perf-overlay shows it from the command line; the launcher’s Perf overlay row (A/V & Emu, Video) makes it stick. The same counters are exported through the control protocol’s status reply for headless runs (see Control protocol).

Drag and drop¶

Disk images can be dropped anywhere on the emulator window:

• Floppy images (ADF/ADZ/DMS/IPF/SCP, gzip or zip packed): with one connected drive the disk is inserted immediately. With several, a drive chooser opens over the display -- click a drive, press its number (1-4), or press Esc to cancel. Dropping several floppies at once queues them all as the target drive’s swap playlist, exactly like a multi-selection in the disk dialog.

• CD images (.cue/.iso/.chd) mount in the machine’s CD drive (CDTV, CD32, or a SCSI CD-ROM unit), with the media-change notification.

• WHDLoad packages (.lha, .zip, or a bare .slave) reboot the machine straight into the game through the WHDLoad booter, keeping any explicit machine choices; dropped on the configuration screen they fill the WHDLoad page’s game field instead.

• Hard disk images and Kickstart ROMs cannot be swapped at runtime; a notice points at the machine-configuration screen, which also refuses such drops while it is open.

The chooser opens after the drop rather than offering per-drive drop targets because the windowing layer reports file drops without a cursor position. For the same reason drops are unavailable under native Wayland (X11/XWayland works).

Menu, tool windows, and overlay panels¶

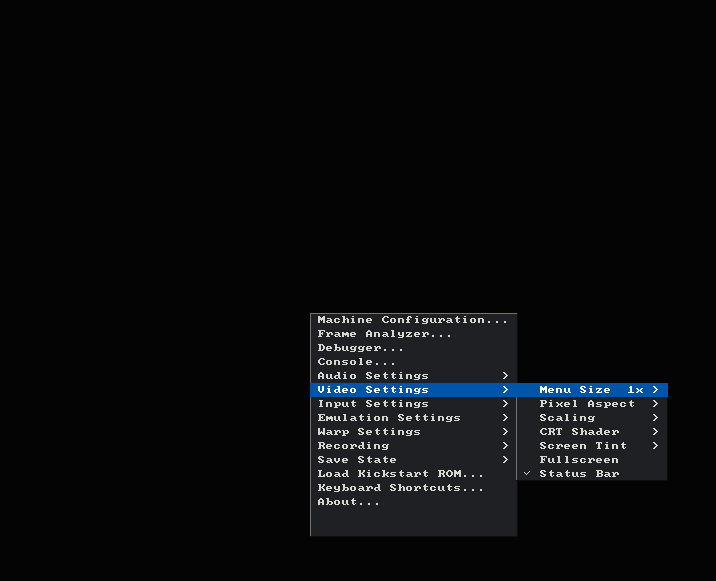

The hamburger button at the right of the status bar opens the menu, as does Cmd+E / Alt+E. It grows upward from the status bar and dims the picture behind it, so what it covers stays readable without competing for attention. The dimming is a window effect: it never appears in a screenshot, a frame dump, or a recording.

The top level holds the tools, then a category per area of the machine, then the ROM, the shortcut reference and About... last. A category is marked > and opens a list of its own beside it; a setting with more than two values opens a further list of those values with the one in force ticked, and a setting that is simply on or off is ticked in place. Categories with nothing to offer -- the serial and parallel ports on a machine with nothing on them -- are not shown at all.

Point at a category and it opens; point at one of its rows and that row is where the keyboard is. The cursor keys walk the same path -- up and down within a list, right into a category, left back out -- and Return picks the row under the cursor. Esc steps back one level, and closes the menu from the top.

Picking a row that opens something else -- a window, a panel, a file dialog -- closes the menu behind it. Changing a setting leaves the menu up with the new value marked, so a run of changes costs one open rather than one each. Opening the menu also releases a captured mouse.

Menu Size under Video Settings draws the whole menu at 1x or 2x. The start-up size is [display] menu_scale, --menu-scale, or Menu size on the launcher’s A/V & Emu page (Video category).

Tool windows are separate native windows so the emulated display remains visible; the debugger and frame analyzer can be open at the same time. They take their keys and clicks through their own windows, and the main window keeps driving the Amiga while they are open -- resume the machine from the debugger and you can play on while watching it. Overlay panels are drawn over the display and are modal: while one is open, key presses and display clicks stay in the UI instead of reaching the Amiga. Esc in a tool window closes that window; Esc in the main window closes the menu or overlay panel, and otherwise belongs to the Amiga.

Tools¶

• Machine Configuration...: opens the configuration screen (below) to reconfigure the machine and relaunch it. The same screen opens automatically on a no-machine start.

• Frame Analyzer...: pauses the machine and opens a separate diagnostic window with two tabs: which chip-bus owner had each Agnus colour clock across the captured frame, including overscan and blanking, and a memory heat map of what last touched each part of the address space; see Frame Analyzer pane.

• Debugger... (also Cmd+B / Alt+B): pauses the machine and opens the tabbed debugger in a tool window; see The debugger window.

• Console... (also Cmd+K / Alt+K): a GDB-flavoured debugger command line in its own tool window; see The Console.

Audio Settings¶

• Audio Output (also Cmd+Shift+A / Alt+Shift+A): the system default, any host output device, or Disabled (sound off entirely, equivalent to --noaudio). The device switches live without a restart.

• Audio Filter (also Cmd+A / Alt+A): Paula’s analogue low-pass filter -- Auto (guest-driven, the default), Enabled, or Disabled. The forced settings apply regardless of what the software asks; auto restores hardware behaviour. The PWR LED keeps following the guest’s /LED line whatever is forced here.

Video Settings¶

• Menu Size: 1x or 2x, described above.

• Pixel Aspect: the 4:3 CRT pixel aspect (the default; PAL lo-res pixels slightly wider than tall, as a real TV shows them) or square pixels (a 320x256 screen is an exact 640x512, handy for pixel-exact comparison with square-pixel emulators). The window and its backing texture resize with the mode. The start-up mode comes from [display] pixel_aspect (see Configuration).

• Scaling: how that canvas is drawn into the window -- Smooth (the default: fit to the window preserving aspect ratio, interpolated) or Integer (the largest whole-number multiple of the canvas that fits, centred in black borders and point-sampled, so every canvas pixel is the same square block of host pixels). The fit is taken in whole canvas pixels, so every step exists on high-DPI and fractional-scale displays alike. Integer scaling applies to RTG board modes too, at multiples of their own native resolution, and gives way to the smooth fit when the window cannot hold even a 1:1 copy rather than cropping the picture. The window never resizes when it changes, and a video recording carries on underneath. The start-up mode is [display] scaling, which also notes which pixel-aspect pairing is fully pixel-exact (see Configuration).

• Screen Centring: nudge where the TV picture sits on the glass, the H-CENTER/V-CENTER controls a real monitor carried on its front. Picture Left/Right step one lo-res pixel (up to 16 each way), Picture Up/Down one scan line (up to 8), Reset recentres; the category row shows the current nudge. Stepping right brings the captured left overscan into view -- artwork that leans off the default view, like the CD32 boot logo’s leading serif -- while glass nudged past the captured raster shows black, as past the raster’s edge on a real tube. A TV-aperture control, so it is greyed under overscan = "full", which already shows everything. Unlike the shader and tint it is picture geometry, not a window effect: screenshots and frame dumps follow it. Session-only; the start-up values are [display] tv_h_centre / tv_v_centre (see Configuration).

• CRT Shader: the GPU tube-emulation pass over the picture -- Disabled, Scanlines (the line structure of a 15 kHz set), Mask (an RGB phosphor shadow mask), CRT (1084) (both, plus a bowed tube face and a corner vignette), and Custom when the config named a shader of your own, which is re-read from disk each time it is chosen. The change is session-only: the start-up preset, the strength knob, and how to write a custom shader are [display] shader and shader_strength (see Configuration). The pass is a window effect only -- screenshots, frame dumps and recordings are never shader-processed -- and it steps aside for the frames it cannot sensibly draw: while the menu or any panel is open, under RTG, and in programmable multisync scan modes.

• Screen Tint: the monochrome-monitor tint over the picture -- Colour (full colour), Black & white, Green and Amber (the two classic monochrome phosphors), and Sepia -- the same looks as the web frontend’s Screen selector. Session-only, like the shader; the start-up tint is [display] tint (see Configuration). A window effect only: captures stay untinted, the menu and the status bar keep their colours, and RTG scanout is never tinted.

• Fullscreen (also Cmd+F / Alt+F): borderless fullscreen on the window’s current monitor. The picture keeps its aspect and letterboxes as needed, exactly as when resizing the window.

• Status Bar (also Cmd+Shift+F / Alt+Shift+F): show or hide the status bar. Handy alongside fullscreen for a clean, chrome-free picture.

• Monitor Bezel: which monitor front the picture sits inside instead of filling the window -- Disabled, 1084 (a two-tone cabinet with the tube sunk into its moulding, and the model badge, the Copperline name and the power lamp along the bottom), or Classic (the plainer rounded frame Copperline drew first). The picture gets a little smaller to make room for either, and the tube shows a little more of it: the whole captured raster fills the glass edge to edge, border colour and all, so the opening’s rounded corners crop into the overscan border the way a real tube’s do, not into the picture. Cmd+M / Alt+M turns the chosen front off and back on; it never changes which. Session-only; the start-up value is [display] bezel (see Configuration). A window effect only, like the shader: screenshots, frame dumps and recordings never include it. A folder of PNG stickers can be drawn onto either front -- die-cut decals on the plastic, riding the same toggle -- via [display] bezel_stickers (no menu item; see Configuration).

• Performance (also Cmd+P / Alt+P): show or hide the performance overlay. Session-only; the start-up value is [display] perf_overlay (see Configuration).

Input Settings¶

• Port 1 Device / Port 2 Device: hot-plug the controller in a game port -- Mouse, Joystick, CD32 pad, Analogue, or None; see Controller ports.

• Joystick Input (also Cmd+J / Alt+J, or the status-bar icon): Gamepad-only or Keyboard joystick emulation.

• Autofire: the autofire rate (off, 3, 5, 8, 12, 16 Hz), which pulses a held fire button on live gamepad and keyboard input. Scripted input is never gated; see the [input] section of Configuration.

• On-Screen Keyboard (also the status-bar keyboard icon): draws an Amiga keyboard under the display; see On-screen keyboard.

• Calibrate Gamepad...: the guided calibration flow, described below.

• Input Mapping...: edits which host keys drive the controller controls, for both keyboard mappings; see Input mapping.

Serial Port and Parallel Port¶

Shown only when something is on the port.

• MIDI In / MIDI Out (serial port in MIDI mode): Paula’s serial bridge onto the host’s MIDI sources and destinations; see the [serial] section of Configuration. MT-32 is offered here too, and with it playing, an MT-32 submenu carries its front panel and display style; see The MT-32.

• Sampler Input / Sampler Gain (parallel-port sampler attached): the sampler’s host capture device, and its input gain, which the Increase and Decrease rows step (also Cmd/Alt+Shift +/-). Both change live. See the [parallel] section of Configuration.

Emulation Settings¶

• Floppy Speed: the emulated drive speed -- 100% (real speed), 200%, 400%, 800%, or turbo (disk DMA transfers complete almost instantly). Changes apply to the live machine immediately. The start-up value comes from [floppy] speed; see Configuration for what each level preserves and the compatibility trade-off.

• Rewind (the hotkey is Cmd+Z / Alt+Z): records rewind history. While it is on, the emulator keeps a ring of whole-machine snapshots and the hotkey steps the machine back through them -- the whole machine, not just the picture: CPU, chips, RAM and all. One press goes back one capture interval (half a second of emulated time by default). Turning it off releases the snapshots, which is where the memory goes; the budget and interval are [emulation] rewind_budget_mb and rewind_interval_frames, and rewind = true starts recording at launch (see Configuration). It shares its substrate with the debugger’s reverse controls, so the same determinism caveats apply -- see Reverse debugging.

Warp Settings¶

• Warp Speed (also Cmd+W / Alt+W): runs the emulator unpaced for fast-forward. Toggling back re-anchors real-time pacing cleanly.

• Warp Limit (also Cmd+Shift+W / Alt+Shift+W): how fast warp runs. Because the window presents with vsync, emulating one frame per presented frame would cap warp at the host monitor’s refresh rate (about 1.2x for 50 Hz PAL on a 60 Hz display). The limit sets an output frame skip -- 2x, 4x, 8x, 16x, or Max -- so warp retires that many emulated frames per presented frame, making the effective speed roughly the limit times the refresh rate (host CPU permitting). Max runs flat out and still presents at vsync. The default is set by [emulation] warp_speed (see Configuration).

Recording¶

• Record Video (also Cmd+R / Alt+R): starts a video-with-audio recording; the same row (or shortcut again) stops it. See below.

• Record Input (also Cmd+Shift+R / Alt+Shift+R): records every input event that reaches the emulated machine; stopping writes a script file that --script replays deterministically. See below.

Save State¶

• Quick Save and Quick Load each list all ten numbered slots, naming when the slot was written or showing it as empty, so an overwrite is visible before it is chosen. No dialog, and no file to name. The hotkeys reach the same slots -- Cmd/Alt+<digit> saves and Cmd/Alt+Shift+<digit> loads, with 0 as the tenth. See below.

• Save State... (also Cmd+Shift+S / Alt+Shift+S) and Load State... (also Cmd+Shift+L / Alt+Shift+L): snapshot the whole emulated machine to a file of your choosing, or restore one and continue from exactly that point. See below.

And last¶

• Load Kickstart ROM...: fit a different boot ROM. Pick a 512 KiB Kickstart, then optionally a second file for the extended ROM (512 KiB at $E00000 or 256 KiB at$F00000; Cancel to skip and remove any fitted extended ROM). The machine then cold-resets, as if the chip had been swapped and the power cycled. The OSD names the image it fitted -- the file name plus the Kickstart it was identified as, e.g. ROM: kick40068.A1200 (Kickstart 3.1 (40.68) A1200).

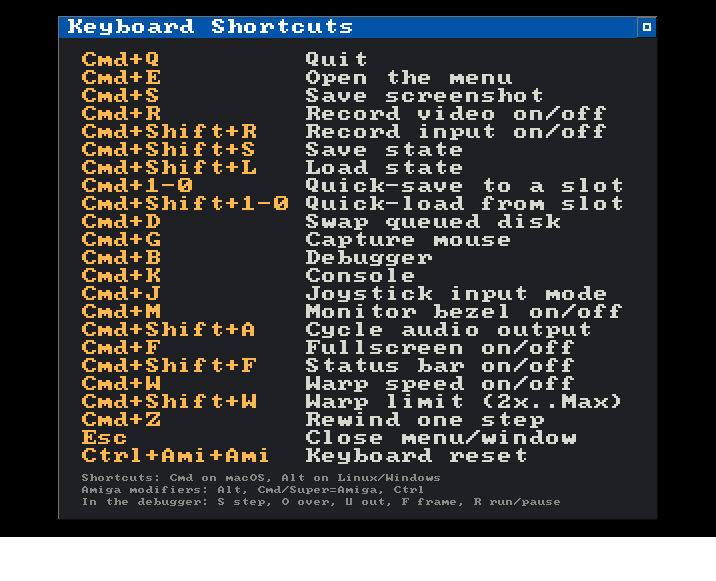

• Keyboard Shortcuts...: the shortcut reference.

• About...: app version plus a summary of the emulated machine -- its ROM: line names the boot ROM file and, for a released image, which Kickstart it is (identified by checksum, see Configuration reference) -- and credits including Copperline’s contributors and Patreon sponsors (see CREDITS.md). Builds made from an untagged git commit append the short commit ID to the version shown in the window title and About panel.

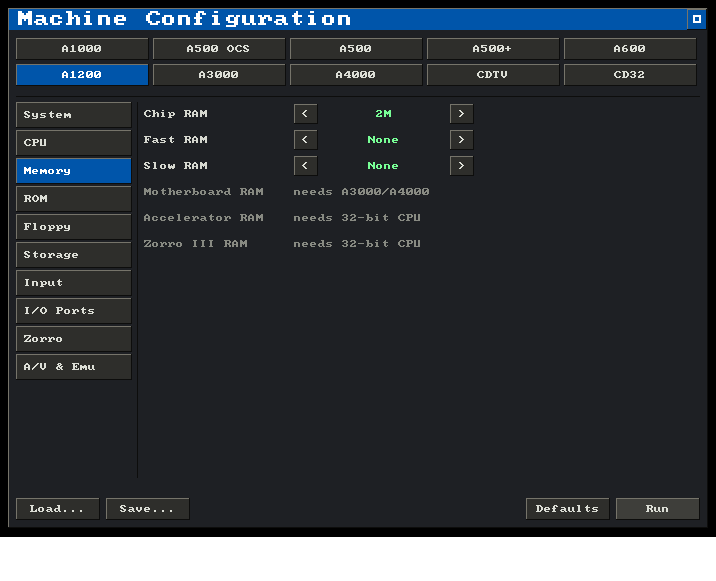

Machine configuration screen¶

Starting Copperline with no machine specified -- no ./copperline.toml, no --config, no ROM or override, and not a headless run -- opens the configuration screen instead of booting. It is also available any time from the menu’s Machine Configuration... item, seeded with the running machine’s settings.

The layout is:

• Machine selector (top). Pick a machine -- A1000, A500 (OCS), A500, A500+, A600, A1200, A3000, A4000, CDTV, or CD32. With no profile chosen the A500 is highlighted, since that is the machine the defaults describe. Selecting a machine applies that profile’s defaults (chipset, CPU, RAM, gate array, RTC) to every tab; settings that no longer apply (an IDE image on a machine with no IDE port, a CD image on a machine with no CD drive) are dropped so they cannot block a launch.

• Category tabs (left sidebar). System (chipset and Agnus/Denise overrides, video standard, RTC, identify board, RTG card), CPU (model, FPU, clock, caches, and the experimental not-cycle-exact JIT mode -- see [cpu] jit in Configuration reference), Memory (cold power-on fill -- zero, deterministic random, or a typed fixed 16-bit word -- plus chip/fast/slow/motherboard/accelerator/Zorro III RAM), ROM (Kickstart and extended ROM, each with a greyed line under it naming what the chosen image is -- Kickstart 3.1 (40.68) A1200 -- identified by checksum rather than by file name, and left blank for an image Copperline does not know; see Configuration reference), Floppy (drive count and speed, then each wired drive as a greyed DFn: heading with its indented disk image and write-protect; drives that are not enabled are hidden rather than greyed. Each drive also carries a Physical drive tick box that hands the bay to a physical floppy drive: its media row then names the interface -- or None with nothing plugged in -- and a Configure button opens that drive’s own page, headed with the built-in FluxBridge library and its version, for the serial port, drive select, density, read mode and replay speed, greying whatever the chosen interface does not honour. See Physical floppy drives), Storage (IDE master/slave -- either can be a CD image instead of a hard disk, attaching an ATAPI CD-ROM drive there -- the SCSI controller -- A2091, A4091, or the A3000’s onboard SCSI -- and its boot ROM and units, a unit likewise a CD image attaching a SCSI CD-ROM drive; a block of buttons at the top links to six sub-pages: Host Folder, for host directories served live as AmigaDOS volumes (up to four mounts, each with a boot priority and a read-write/read-only Access field -- the config file itself takes up to eight [[filesys]] mounts, of which the launcher edits the first four); Host Disk, for a real disk of this computer’s (see Real hard disks); Boot Priority, which sets each IDE/SCSI drive’s synthesized-RDB boot priority (see below); Create Image..., which makes new ADF and HDF images (see below); CD (image, insert delay, CD32 NVRAM); and Lide, the built-in [lide] Zorro II IDE board -- personality (RIPPLE/RIDE/AT-Bus 2008), boot ROM(s), up to four drives (two on RIDE/AT-Bus 2008, any of which can likewise be a CD image), and each drive’s own boot priority, kept on this page rather than the shared Boot Priority one so the board’s up-to-four drives fit alongside it. Each sub-page has a < Back button in that block that returns to Storage), Input (the controller device in each game port and the joystick input source), I/O Ports (the serial, parallel, and Ethernet ports under Serial: / Parallel: / Ethernet: headings, with each port’s options indented beneath it: serial mode and MIDI endpoints, with the emulated MT-32’s ROM images, front panel and display style when it is the chosen output (see The MT-32), and, for the two TCP modes, the address box that mode needs -- Connect (tcp-connect) for the host:port to dial, or Listen (tcp) for the local bind address, each typed into by clicking it; the parallel device -- None, Printer, or Sampler -- with, for the printer, its capture output file, or for the sampler, its host audio input and input gain; and the A2065 Ethernet and HostSocket bsdsocket.library boards, each -- None, Isolated, Loopback, NAT, or Bridged; Bridged adds a host-adapter row. NAT and Bridged show a warning because host-clocked traffic makes input recordings and save-state replays non-reproducible while it flows), Zorro (extra autoconfig boards by metadata file, with a config panel for a WASM plugin board’s declared options), WHDLoad (your game collection, and the settings games boot with -- see WHDLoad games), and A/V & Emu, split by a row of category buttons at the top into Audio (output device, channel mode, stereo separation, filter, floppy sounds and volume), Video (start fullscreen, status bar, monitor bezel style, perf overlay, menu size, overscan, pixel aspect, scaling, deinterlace, screen tint, phosphor, CRT shader and shader strength), Emulation (power-on, realtime priority, pacing, warp speed), and Paths -- opening on Audio, and switched freely between the four. The Paths page edits the [paths] section of the configuration (see Configuration reference): the base folder on top, then one row per folder. A row reads (default) until a folder is chosen for it; Browse picks one and a Reset button then appears to put the row back to inheriting. The base folder always shows its full path, and swaps Browse for Reset once set. Changes take effect immediately -- a screenshot taken after moving the row lands where the row now says -- and are written to the configuration by Save As or Save default like everything else.

• Settings rows (right pane). [<]/[>] step through a value, On/Off buttons flip a toggle, and the Browse and Clear buttons set or remove a file path through a native file dialog. On the Storage tab (IDE master/ slave, a SCSI unit, or a lide drive), Browse lets you pick a directory as well as a file -- on macOS -- since any of those slots can be a host directory mounted as an in-memory FFS volume instead of a raw image; on other platforms the dialog is file-only there too, matching the rest of the launcher, and a directory target still has to be set some other way (e.g. editing the config file directly). Once an IDE, SCSI, or lide drive has an image a small editable box appears next to Browse: click it and type to set the volume name for a directory mount (left blank, a directory mount inherits the host directory’s name; the box has no effect on a raw HDF). Once that image is a host directory specifically, an FFS/OFS button appears just left of the volume-name box: click it to flip the in-memory volume’s filesystem (FFS by default; OFS is the one every Kickstart from 1.2 onward can read with no guest-side setup). A setting that does not apply to the chosen machine is greyed and shows why in place of its control -- “needs 32-bit CPU” for Zorro III RAM and the RTG card, “needs 68020+” for the FPU, “needs A600/A1200/A4000” for IDE.

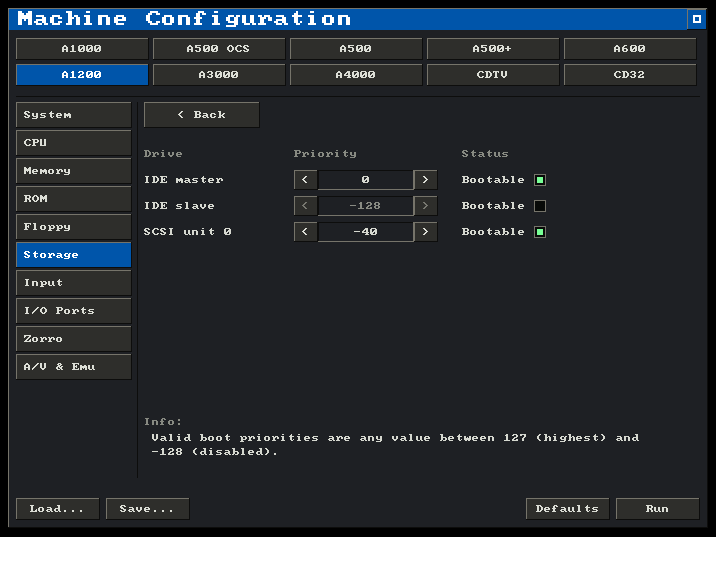

• Boot Priority sub-page (from Storage). One row per hard-disk drive, under Drive / Priority / Status columns, setting the de_BootPri written into the partition Copperline synthesizes in front of a bare hardfile (it has no effect on an image carrying its own RDB). In the Priority column [<]/[>] nudge the value by one and the value box is also a text field -- click it and type any priority (-128..127), then Enter. The Status column’s Bootable box is ticked by default; clearing it greys that row’s priority and writes the -128 “disabled” sentinel, so the volume mounts but never boots. A drive with no image, or a CD image, is greyed (“No drive” / “CD-ROM”), with no stepper to reach for. A SCSI unit appears only once it carries a disk, so the page lists what the machine can actually boot from. Drives you add here with no priority of their own cascade so they do not tie: the first is 0 (just under DF0:'s 5), and each later one drops below the floppies -- -35, -40, -45. A drive already carrying a priority in the config keeps it, and one that just names a device with no bootpri stays at 0. See Configuration reference for how the priority ranks against Kickstart’s DF0: boot node at 5.

• Action bar (bottom). Load... reads a .toml config through a file dialog. Save... opens a small dialog of three buttons, each described in the dialog as the pointer moves over it: Save As writes a .toml through a file dialog (a minimal file, only the settings that differ from the chosen profile’s defaults, so it reads like the example configs); Save default saves the running configuration as the one Copperline starts with: this screen opens showing it, and a run with no --config and no ./copperline.toml boots it (see Configuration reference); Reset default deletes that saved default after an “Are you sure?”, returning Copperline to factory settings. The close gadget, or a click anywhere else, puts the dialog away. Defaults resets the screen to the selected profile. Run validates the configuration and boots it; if anything is wrong -- an unusable RAM size, a missing disk image, a ROM file that cannot be read, an option the chosen machine cannot use -- the reason is shown on the status line and you stay on the screen to fix it.

Saved files use the same schema as a hand-written copperline.toml (see Configuration reference), so the screen and the config file are interchangeable: configure a machine and save it, or load an existing config to tweak it. Run builds the machine in place, so the configuration screen and a direct --config launch produce an identical machine.

Create Image¶

Storage -> Create Image... makes new, empty disk images: Floppy Disk writes an ADF, Hard Disk writes an HDF. These pages write a file and nothing else; none of their settings belongs to the machine, so none of it is saved to a configuration file.

Save... opens a file dialog, then writes the image. The status line reports progress and the finished size; the write runs in the background, so the window stays responsive while a large image is written.

Floppy Disk¶

Hard Disk¶

An image larger than 2048 GB can be made only with Partitioning: None and Filesystem: Unformatted: every block number an RDB or an AmigaDOS volume uses is a 32-bit field.

With Sparse image cleared, the volume the file is being written to is checked for room first, and the write is refused if there is not enough.

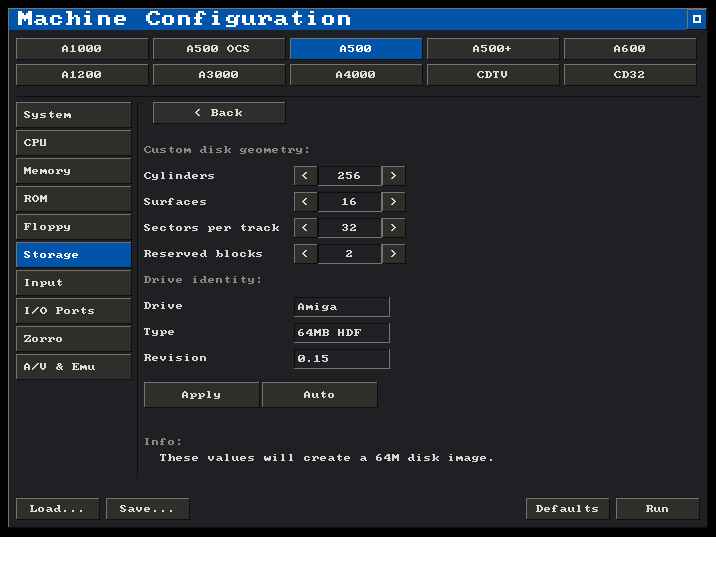

Geometry editor¶

Reached from Configure on the Hard Disk page once Geometry is set to Custom. The geometry set here decides the image’s size; the Size box seeds it.

Apply returns to the Hard Disk page. Auto puts every figure back to what the size implies, and the identity back to Amiga / the size / Copperline’s version.

DOSType¶

The Filesystem row picks OFS or FFS; the DOSType row picks the options that filesystem carries. Between them they name one of the eight AmigaDOS types:

Dir cache and Long names are two values of one field, so ticking one greys the other. Both are international, so International shows ticked and greyed alongside either.

Dir cache needs Kickstart 3.0, International needs 2.0, and Long names needs a filesystem no Kickstart provides.

Recording video¶

Cmd+R on macOS or Alt+R on Linux/Windows (or the menu’s “Record Video”) starts capturing the emulated display and sound to copperline-video-<YYYYMMDDHHmmSS>.avi in the recordings folder; pressing it again stops and finalizes the file. A red REC badge sits in the display’s top-right corner while a recording runs -- like the screenshot overlay, the badge, status bar, and menus are never part of the captured video.

The file is an AVI with lossless ZMBV video (the DOSBox capture codec: zlib-compressed keyframes plus frame deltas, which keeps typical Amiga output to a few MB per minute) and uncompressed 16-bit stereo PCM audio at 44.1 kHz. It plays directly in VLC, mpv, and anything else built on ffmpeg; for other players, transcode with ffmpeg -i copperline-video-<ts>.avi out.mp4.

Frames and audio are captured on the emulated timeline, not the host clock: the recording stays in sync even when the host stutters, and a capture made under Warp Speed plays back at normal speed. The audio track is tapped before the status bar’s volume slider, so recordings keep full level regardless of the live output volume. Pausing (or powering off) suspends the capture; recording resumes when emulation continues.

Recording input¶

Cmd+Shift+R on macOS or Alt+Shift+R on Linux/Windows (or the menu’s “Record Input”) starts logging every input event that reaches the emulated machine -- key presses with their hold times (typed on the host keyboard or clicked on the on-screen one, which reaches the machine by the same path), mouse buttons and motion, joystick / CD32-pad controls, analogue pot positions, and floppy inserts, on whichever port carries each device -- each stamped with its emulated time. Pressing it again stops the recording and writes copperline-input-<YYYYMMDDHHmmSS>.clscript in the recordings folder: a plain text file of scripted-input directives that copperline --script FILE replays exactly, because the core is deterministic and the events re-fire at the same emulated timestamps.

This is the direct way to turn “I can reproduce it by hand” into a regression: play the sequence once while recording, then keep the script (optionally together with a save state to skip the lead-in) as a deterministic, shareable reproduction. The format and the headless --record-input variant are described in Input recording and script files.

Save states¶

Cmd+Shift+S on macOS or Alt+Shift+S on Linux/Windows (or the menu’s “Save State”) writes a snapshot of the whole emulated machine to copperline-state-<YYYYMMDDHHmmSS>.clstate in the states folder: CPU, chip/slow/fast RAM, ROM, the full chipset and CIA state, floppy images (including unsaved in-memory changes), expansion boards, and CD/NVRAM state. Cmd+Shift+L / Alt+Shift+L (or “Load State...”) restores one; the machine continues from exactly the saved point, byte-for-byte -- the core is deterministic, so a resumed run is indistinguishable from one that was never interrupted.

States are taken at emulated-frame boundaries and are versioned: a file from an older, incompatible build is refused with a clear message rather than producing a corrupt machine.

A state is self-contained: it carries its own RAM, ROM, and chipset, so loading one always restores the machine it was taken on -- even if you launched Copperline with a different config. When the loaded machine differs from the running one -- a different model, chipset, video standard, RAM size, or even a different Kickstart of the same machine (the ROM is fingerprinted) -- the load reconfigures to match the state and tells you so (the load message names the restored machine, e.g. “reconfigured to A1200 / 68EC020 / AGA / PAL”); your current config is not silently mixed in. Two caveats:

• Hard-drive images (HDF files) are referenced by path, not embedded. The state reopens the same file on load, so guest writes made to the hard drive after the snapshot are still visible after restoring -- treat a state as a CPU/chipset snapshot, not a disk backup. In-memory volumes (directory-as-HDD) and floppy images are embedded whole.

• CD images are likewise reopened by path; keep the cue/bin (or CHD) where it was.

Quick-save slots¶

Naming a file is the wrong interaction for the “before this jump” save you take twenty times an hour, so there are ten numbered slots as well. Cmd/Alt+<digit> saves to that slot and Cmd/Alt+Shift+<digit> loads it, with 0 as the tenth. The menu’s Quick Save and Quick Load lists reach the same ten, each row naming when that slot was written or showing it as empty.

A quick save overwrites its slot without asking -- that is the point of it -- and loading a slot that has never been written reports “Slot N is empty” rather than failing. Slots are ordinary .clstate files, identical in format to a named save, kept in the states folder below. And because they are per user and not per machine, a slot may hold a state from a different Amiga than the one running. That is safe: as above, the state carries its own machine and the load reconfigures to match it and says so.

The headless flags --save-state-after SECS PATH and --load-state PATH script the same feature for debugging workflows: snapshot a long-running program just before the scene under investigation once, then iterate from the state in seconds instead of re-emulating minutes. The file format and what exactly is (and is not) captured are specified in the internals chapter.

Where files go¶

Everything Copperline produces is kept per user rather than per working directory, so it is reachable however Copperline was launched. The host-data directory is:

with a folder inside it for each kind of file: screenshots/, states/ (named saves and the quick-save slots), recordings/ (video captures and recorded input scripts), nvram/ (battery-backed clock RAM and CD32 game saves), traces/ (debugger traces and waveform captures), and configs/ (configurations saved from the configuration screen). Each folder is created on first use, and each can be moved with the [paths] section of the configuration or the configuration screen’s A/V & Emu -> Paths page -- see Configuration reference. Headless flags that take an explicit path (--screenshot-after and friends) write exactly where they are told and ignore all of this.

A battmem.nvram or cd32-nvram.bin left in the working directory by an earlier Copperline keeps being used from there -- they hold real game saves, so nothing is moved or abandoned behind your back.

For a self-contained installation, create an empty file named portable.txt beside the Copperline executable (or beside the downloaded .AppImage) and restart Copperline. That folder then becomes the host-data directory, and all of the folders above -- plus gamepad calibration, keyboard mappings, the default WHDLoad library and other per-user host data -- live inside it, so the whole installation moves as one folder. Delete portable.txt to return to the platform location above; Copperline does not move existing files in either direction.

Controller ports¶

An Amiga has two game ports, and either accepts any controller. Copperline models that: each port carries a device -- mouse, joystick, cd32 pad, analogue paddles, or none -- set with [input] port1/port2 in the config (or --port1/--port2, or the launcher’s Input tab). The default is the stock wiring, a mouse in port 1 and a joystick in port 2 (a CD32 pad on the CD32 profile). The runtime menu’s Port 1 Device / Port 2 Device items hot-plug a different device live, exactly like swapping the physical plug: the old device’s lines release, and the port’s quadrature counters hold.

The host mouse drives the (lowest-numbered) port with a mouse plugged in and feeds its JOYxDAT counters. Click the display (or press Cmd+G on macOS or Alt+G on Linux/Windows) to capture the host mouse; the same shortcut releases it. The click that takes the capture is a window action and is not passed to the Amiga, so the first click that reaches the guest is the first one aimed at it -- otherwise a single click on a gadget arrives as two, close enough together to read as a double click.

While an overlay panel is open, host cursor motion is not fed to the emulated mouse. Tool windows are not modal that way: with the debugger or analyzer open, motion and clicks over the main window’s display still drive the Amiga, and the capture click and shortcut work as usual. A panel or tool window opened while the mouse was captured borrows the cursor and hands the capture back when the last of them closes, so a visit to the debugger does not leave the machine uncaptured -- which matters most in fullscreen, where there is no desktop to reach for. An explicit Cmd/Alt+G release settles it the other way: the capture stays off.

Uncaptured, host cursor motion over the display still drives the emulated mouse, and [input] mouse_sensitivity scales it the same way it scales captured motion. At the default setting the factor is 1.0 and the pointer tracks the host cursor one-for-one.

[input] mouse_capture (--mouse-capture, the launcher’s Input tab) changes when the grab is taken: auto grabs whenever the window has the focus and on entering fullscreen, so no host cursor is ever loose over the display, and manual grabs only on the shortcut, leaving display clicks to go straight to the Amiga. See Mouse capture.

A USB gamepad drives the emulated digital joystick on whichever port one is plugged into: directions through JOYxDAT, fire through /FIRx, and a second button through POTxY/POTGOR. A cd32 device speaks the CD32 serial button protocol instead, including the red/blue/green/yellow and transport buttons, on either port. An analogue device presents pot resistances on the POTxX/POTxY pins; no live host device maps to it yet -- drive it with --pot-after scripting or the control protocol’s input.analogue.

Copperline can also emulate the joystick from the host keyboard. There are two explicit input modes, and the active one is always shown by the gamepad / keyboard icon in the status bar (next to the volume control), so a “my keys aren’t working” surprise can be spotted and fixed at a glance:

• gamepad (the default): use only a calibrated gamepad; every keyboard key passes through to the Amiga. With no pad connected there is no joystick input. This is the no-surprise mode for interactive AmigaOS setup.

• keyboard: use the keyboard-joystick mapping so the joystick port works without a controller.

With joysticks (or pads) in both ports -- a two-player setup -- the gamepad and the cursor-key mapping drive one port each, and the mode picks which source gets the lower-numbered port. Whenever no physical pad is present, a second keyboard mapping on the numeric keypad stands in for it, so two players can share one keyboard.

With mice in both ports, the host mouse drives the lower-numbered one and the cursor-key mapping drives the second as an emulated mouse (in keyboard mode; in gamepad mode the second mouse is undriven and the keyboard passes through). The same applies whenever the keyboard-routed port carries a mouse: the mapping’s keys become the pointer.

Click the status-bar icon to flip between them; the menu’s Joystick Input item and Cmd+J on macOS / Alt+J on Linux and Windows do the same. Set the starting mode with [input] joystick in the config (or --joystick MODE, or the launcher’s Input tab).

The primary keyboard mapping is FS-UAE-compatible: cursor keys for directions, and Right Ctrl, Right Alt or Left Ctrl for fire, with Left Alt as the second button (the left-hand fire keys pair naturally with the right-hand arrows, and compact keyboards often lack the right-side modifiers). For CD32 pad buttons, C is red/fire, X is blue, D is green, S is yellow, Return is play/pause, Z is rewind, and A is forward. On a mouse port the same keys drive the pointer: cursor keys move it, the fire keys are the left button, X or Left Alt the right, and D the middle. The second (numpad) mapping is 8/2/4/6 for directions, 0 for fire, . for the second button, and numpad Enter for play. While a mapping owns its keys, they are not sent to the Amiga keyboard.

Those are the defaults; every binding is editable from the menu’s Input Mapping... item (see Input mapping). A held fire button can also be turned into a pulse train with the Autofire item or [input] autofire_hz.

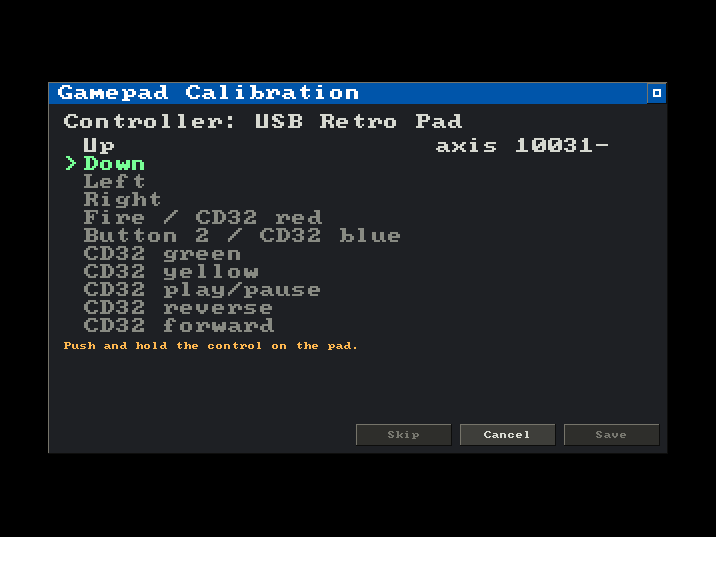

Gamepad calibration¶

Pads are read through raw gilrs events with no controller database, so each controller is calibrated once: push each control when prompted. This records raw axis/button codes and directions, which makes any pad work regardless of database coverage and handles inverted or odd axis layouts automatically.

Run it either from the menu (“Calibrate Gamepad...”) -- which ends with a live test of the finished bindings and a Save button that makes them live immediately -- or from the terminal with copperline --calibrate-gamepad. The steps are the four directions, fire (CD32 red), button 2 (CD32 blue), and the optional CD32 green/yellow/play/rewind/forward buttons; every step waits for the pad to return to neutral before sampling, so a held control cannot bleed into the next binding.

Calibrations are saved per controller UUID in ~/.config/copperline/gamepads.toml ($XDG_CONFIG_HOME respected; %APPDATA%\copperline\ on Windows, or beside the executable in portable mode).

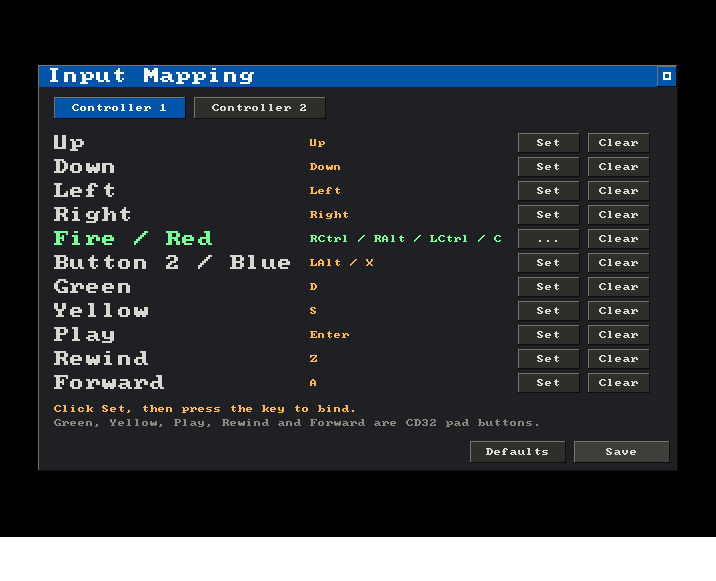

Input mapping¶

The keyboard also stands in for a controller, on two independent mappings so one keyboard can drive a two-player setup (see Controller ports). The menu’s Input Mapping... item edits both.

Pick the mapping with the Controller 1 / Controller 2 tabs, then Set on a row and press the key to bind (Escape cancels that row without closing the panel). Clear unbinds a control entirely, Defaults restores the built-in layouts, and Save writes the map and applies it to the running machine. Closing the window discards the edits.

A control may hold several keys, and they OR together: fire ships bound to Right Ctrl, Right Alt, Left Ctrl and C, so compact keyboards without the right-hand modifiers still work, and releasing one alias while another is held keeps the button down. Binding a key removes it from wherever it was before -- including from the other mapping -- so the two controllers can never end up fighting over one key.

Saved maps live next to the gamepad calibrations, in ~/.config/copperline/keymap.toml (same per-platform locations as above). Deleting the file restores the defaults.
