A software article by Efron Amber Licht
“There is no magic. There is only knowledge, more or less hidden.”
Gene Wolfe,
Book of the New Sun.
Computers are physical machines that consume resources to create and operate. Using as few resources to create outputs from inputs as possible is what separates a real systems programmer from the dilettante. This is my third article on the fundamentals of systems programming and the first about the subject nearest and dearest to my heart: software performance. It can be read on it’s own and I’ll try not to make too many references to previous material.
Software is a tool to produce output from input. More efficient, “high-performance” software produces that output cheaper, faster, or more reliably, with the minimum input possible. Doing so is easier said than done, but we can split the study of software performance into three parts: knowing your performance and finding bottlenecks (measurement), designing a system without any critical performance mistakes (architecture), and fixing the problems you can (optimization). We’ll cover all three, roughly in that order.
This article is very long, nearly 20k words at my last count. If you’re just interested in the practical bits, check out the guide to pprof and the practical optimization and benchmarks in the back half: I won’t judge too much. Most headings are self-links and you can click on the line numbers on any section of code to get a sharable link, so it should be easy to save your place and come back later, and I’ve provided a table of contents below.
A systems programmer measures and does not guess. The core of software performance is measurement and an understanding of the system. Measurement comes in many kinds, but they come in a specific order: first tests, then metrics, profiles, and benchmarks, in that order.
Once you’ve found a problem, how do you fix it? There are only a handful of basic techniques to improve the performance of any task, and they don’t only apply to computers. In fact, we do them all the time without realizing they are ‘optimizations’: human being naturally try to avoid wasted effort in the physical world. For example, if I want to eat popcorn, I don’t get up from the couch, get in my car, drive to the store, buy a single popcorn kernel, go home, pop it over the stove, take it to the couch, sit down, eat the popped kernel, then repeat. I buy many bags of microwave popcorn at the store at the same time (batching), at the same time as I purchase other items (optimizing access patterns), store them in my cabinet (caching), pop them in the microwave while I do something else (scheduling/pipeline optimization), then take the whole bag to the couch (delicious). Sadly, in software, this kind of horrifically inefficient design is the rule rather than the exception.
We’ll call this kind of bad design “pessimized”, to steal a term from Casey Muratori. Because performance is limited by bottlenecks, it is generally more important to avoid foolish pessimization than to chase optimization.
The following table summarizes the basic techniques of optimization using both software and kitchen examples.
| casual description | technical description | software example | kitchen example |
|---|---|---|---|
| do less work | algorithmic optimization | binary versus linear search | dicing an onion ‘properly’ - N+M cuts for NxM diced bits. |
| do the same work faster | micro-optimization | loading from cache vs loading from disk; just buying a faster computer; | using food processor for small cuts & cleaver for large cuts |
| do tasks physically close together at the same time | optimizing access patterns | struct of arrays vs array of structs | chopping all onions, then all peppers, etc; |
| do it using pre-prepared materials | preprocessing | serving prebuilt static webpages pages vs forming dynamic ones; caching | ‘mise en place’; buy pre-diced garlic; |
| do work at the same time | parallelization | web server serving individual clients on separate threads | running multiple burners |
| do it in an order that involves less waiting | scheduling/pipeline optimization | start dependencies in a background thread; nonblocking IO | pre-heating the oven - putting the turkey in the oven first b/c it takes the longest; having guests serve themselves; bring dishes as they are ready |
| do it without waste | efficiency | taking advantage of side effects; eliminating unnecessary code | using scraps, organs, and marrow for soup & fats for schmaltz |
| synchronize less | pipeline optimization | reduce number of services; reduce number of network calls; reduce mutex contention | remove an ingredient; prepare ingredients;separately |
| do nothing | feature rejection | CLOSED: WON’T DO | skip lunch |
Each of these could be the subject of an article or a book on their own and are worth your time. First and most importantly, a proper understanding of algorithms and data structures is essential for performant programming. The combination of the hashmap and resizable array can take you a long way, but for some problems there’s simply no substitute for the right data structure. (Happily, most of them can be built out of combinations of hashmaps and resizable arrays). I learned off CLRS, which is a good reference for those with a formal mathematics occasion, but pretty tough for a first approach. If you don’t have a formal CS background, try a couple of different books and see which ones gel with you.
- Antoine de Saint-Exupéry
Yes, I quote this in every article.
I hear all the time that performance doesn’t “really” matter. I strongly disagree. Here are some motivations for software performance.
profit = revenue - cost. Reduce cost, increase profits.Let’s back all the way up. What do we mean when we talk about a ‘high-performance’ machine? What specifically did we mean by “cheaper” and “faster”?
Using ‘machine’ in the abstract sense. Usually this is a software program, but it could be a physical machine, an algorithm for sweeping the floor, whatever. It’s a Thing That Solves A Problem.
When we talk about the performance of a machine, we mean it’s ability to take inputs and convert them into outputs. A ‘high-performance’ machine is one that excels in one or more of the following categories:
These concepts don’t just apply to computers: all of our technology can and should be judged on this criteria. As such, for each I’ll try and have a couple of examples in the tradition of my grandfather
Latency: How fast?
The time from input to output for an individual input.
Human beings are extremely latency-sensitive machines. Lower latency should always be a priority, especially for interactive software. Nothing kills fluid interaction with computer like input latency. If you don’t believe me, try switching your monitor to 15fps and sending me an email without a typo.
From Dan Luu: “Input Lag”
Latency matters! For very simple tasks, people can perceive latencies down to
2 msor less. Moreover, increasing latency is not only noticeable to users, it causes users to execute simple tasks less accurately. If you want a visual demonstration of what latency looks like and you don’t have a super-fast old computer lying around, check out this MSR demo on touchscreen latency.For my dishwasher, my minimum latency is the cycle time - two hours. Most dishes take much longer than that to clean, since they’re waiting in the racks for longer.
There’s also a minimum latency to load or store any item from the dishwasher, since you have to open up the dishwasher and reposition the racks. You can somewhat cut this latency by loading or retrieving multiple elements at a time.
Latency is usually the least-negotiable performance characteristic. No amount of arguing or clever engineering can make a packet go faster than light, so don’t send a packet on a trip without a purpose.
Since you can’t fix latency later, it merits the most attention during the design phase of any performance target.
Which computer operations have low latency?
The following numbers - taken from the famous “latency numbers every programmer should know” and lightly edited - give an idea of these relative latencies. While hardware changes, the relative speeds are still a good guide.
| what | time | commentary | — | |
|---|---|---|---|---|
| mathematical instruction | 0.1 ns | |||
| jump (predicted, within cache) | 1 ns | |||
| L1 cache reference | 0.5 ns | |||
| Branch mispredict | 5 ns | |||
| L2 cache reference | 7 ns | 14x L1 cache | ||
| Mutex lock/unlock | 25 ns | |||
| Main memory reference | 100 ns | 20x L2 cache, 200x L1 cache | ||
| Context Switch or System Call | 1000 ns | |||
| Compress 1K bytes with Zippy | 3,000 ns | 3 μs | ||
| Send 1K bytes over 1 Gbps network | 10,000 ns | 10 μs | ||
| Read 4K randomly from SSD* | 150,000 ns | 150 μs | ~1GB/sec SSD | |
| Read 1 MB sequentially from memory | 250,000 ns | 250 μs | ||
| Round trip within same datacenter | 500,000 ns | 500 μs | ||
| Read 1 MB sequentially from SSD* | 1,000,000 ns | 1,000 μs | 1 ms | ~1GB/sec SSD, 4X memory |
| Disk seek | 10,000,000 ns | 10,000 μs | 10 ms | 20x datacenter roundtrip |
| Read 1 MB sequentially from disk | 20,000,000 ns | 20,000 μs | 20 ms | 80x memory, 20X SSD |
| Send packet CA->Netherlands->CA | 150,000,000 ns | 150,000 μs | 150 ms |
TLDR: Do things in-memory and in-process where possible. Program and computer boundaries are extraordinarily expensive.
A “pure” machine or program converts it’s input into outputs without having a negative impact on the world around it. “Side effects” are other ways of thinking about this. Impurity is something that you should only tolerate if you’re getting something valuable from it. Caches are the canonical example of sacrificing purity for latency and bandwidth.
My dishwasher has a number of side effects, including unwanted noise, venting hot water vapor into my kitchen, and lowering the pressure of hot water available elsewhere in the house (more about that one in a second).
An efficient solution consumes fewer inputs to produce the desired outputs. Inputs can either be totally consumed by the process (like turning wood into paper) or temporarily occupied (like the physical space on the conveyor belt in a factory).
Using less flour to make bread is one kind of efficiency, as is using less fuel, as is occupying a smaller oven. For a computing task, a good analogy might be clock time, electricity, and RAM.
More efficient dishwashers use less water and power. A very large kitchen might be best served by having multiple dishwashers of different sizes and shapes for different kinds of loads.
The best kind of efficiency comes from less: less code running on fewer machines in less time costing less power. Sometimes you can gain efficiency by a kind of asymmetrical tradeoff, where, for example, a little bit of RAM can you a whole lot of CPU time. More on that later.
The numbers of inputs and outputs that can be processed over a time interval under the given conditions, usually assuming optimal packing of inputs. How exactly you measure bandwidth can get real complicated real fast.Usually, there are multiple kinds of bandwidth - /machine/minute, for example - and you need to figure out which one is the limiting factor, the bottleneck.
The dishwasher has 2 racks, each of which are subdivided into a 12x6 grid, about big enough for a water glass each.
12*6*2= `12*12= 144 “glases per cycle”. The cycle conveniently takes about 140 minutes, so we’ll say it’s a bandwidth of 1 GPM ‘glass per minute’.A more through approach would involves measuring the insides of the racks to figure out the actual surface area of the racks.
Of course, in practice, we don’t pack dishwashers with uniform and identical dishes, and if you pack a dishwasher too tightly it doesn’t work.
Simplicity: Do I understand it?
Simpler solutions are usually faster and more efficient, and they’re easier to change later if your requirements do. Be wary of ‘free’ performance you don’t fully understand: i.e, other people’s libraries that look good on benchmarks. Only take on additional complexity if it does something for you. Only take on additional complexity you don’t understand if you have no other choice.
I chose a dishwaster with a garbage disposal because it means I don’t have to clean a trap. I did not choose one with an “AI wash” because that sounds like nonsense and is additional complexity without a known return.
Write down the ordinary chores that you do day to day (cooking, sweeping, washing dishes, folding laundry, etc). What kinds of tradeoffs do you make in these day to day? Can you think of any obvious improvements to the algorithms you use here? Hint: try taping yourself actually doing one of these tasks, or watching a friend do them. Most people are pretty inefficient. Try your new approach and compare.
The bandwidth and efficiency of a broken machine is zero and it’s latency is infinite. A solution that only works on Tuesdays before noon is no solution at all.
My dishwasher is not perfectly reliable. For one thing, it’s on the same pipes as the rest of my hot water, a relatively old system. The system can handle two hot showers OR a dishwasher, but not both: that kind of load will hurt all three systems. In other words, the impurity of one system has knock-on effects on the reliability of another.
The garbage disposal of the dishwasher is an additional point of failure, but the dishwasher contains (smaller) trap as a failsafe. Worst comes to worst, I can wash by hand.
One kind of reliability that’s not intuitive is “graceful degradation under load”.
Compare the behavior of cars and trains during rush hour or other extreme loads. A drain may handle a large amount of rain OK but back up during a storm.
Our goal is to produce software that has high-performance. Unfortunately, the world is filled with plenty of people who will settle for software that appears high-performance.
It is incredibly easy to cook benchmarks to favor your software. Once any measurement becomes a target - that is, there is some kind of reward for being “the best” (usually money or promotion, but sometimes just attention) - there will be a temptation to cook the books to achieve that reward without earning it. Even in situations where there’s no plausible reward, some people just cheat on benchmarks for the hell of it.
At an even more basic level: software should change to become better rather than worse. It’s easy to add pointless layers to avoid a political fight at work, but it’s wrong, and it will lead to bad software. A real programmer is loyal to the truth.
While we would like to have all of the above, usually you have to choose some balance or proportion between them.
Latency, Bandwidth, and Efficiency are always in tension. Consider scheduling for commercial air flights. It’s fastest to have lots of small flights taking off all the time, but this would stress the airports’ scheduling systems to their latest, so they prefer fewer, larger flights, which are cheaper for the airline to run and get more people around faster. Similarly, it’s far more efficient to bundle together INSERT statements to a database, but waiting to collect multiple rows will hurt your turnaround time for the individual ones.
Efficiency and Reliability also often trade off. The most efficient machines have no waste, but they also have no headroom. To use commercial airline scheduling as an example, most flights have some cancellations, which is another way of saying they don’t use all of their seats. An airline can get better efficiency by overcommiting the seats on the average flights, but when a particular flight happens to fill all it’s seats, someone is going to miss their flight, which will kill latency and efficiency.
Bandwidth and Complexity often trade off. A clever programmer with good knowledge of SIMD can get incredible throughput at the expense of portability and confusing the heck out of whoever has to deal with their code later.
Complexity and Reliability trade off, too. If and when a complicated system breaks down, it can be almost impossible to get at and/or fix.
Integrity trades off with everything else. Once your integrity goes, everything else will follow.
“The major difference between a thing that might go wrong and a thing that cannot possibly go wrong is that when a thing that cannot possibly go wrong goes wrong it usually turns out to be impossible to get at or repair”.
Douglas Adams
When we think about software performance, this usually seems like a very low-level endeavor, best suited for grizzled C++ warriors and the last remaining assembler wizards of the high hills. While this has some merit to it - you’ll never make truly great software without a decent sense of how the data flows through your machine - it is secondary to the decision of what software to build to begin with.
After all, when you are searching for gold, good technique helps, but the first step is to pick a site with gold in it.
First understand your problem - that is, what your inputs are, how they are distributed, and the expected outputs and performance characteristics, then get to the implementation details.
Of course, your classic computer science data structures and algorithms loom over this whole process and should always be in the back of your mind, since no amount of clever programming or sophisticated architecture will turn an
O(n^2)into anO(log(n)). On the other hand, whether that’s a problem depends on how big you expectnto be.
Think about who is using your program, what they want, where, and why. This will inform you of your priorities and cutoffs for latency, throughput, etc.
For an example, let’s talk about how ordinary people in new york city transport themselves and other objects from Brooklyn to Manhattan.
Similarly, the correct program for one situation may be completely wrong for another even if they solve the same problem from one point of view.
Software Architecture is hard to teach from general principle, so I’ll tell you a story taken from my real life experience. That will segue nicely into learning about profiling, benchmarking, and ‘real’ low-level optimization.
Welcome to ‘Cable Time’.
You’re reading this on the internet right now, which means you have some kind of Internet Service Provider. If you’re reading it on a computer in the United States, like I am writing it, that internet service is likely carried part of the way as a encoded electrical signal over a shielded cable (‘coaxial cable’).
That coaxial cable carries network traffic to a Cable Management Termination System (CMTS) somewhere near you, which then talks to a bigger router, which talks to the internet.
That is, the current network topology for a cable internet subscriber might look something like this:
The history of telecommunications is far too big a subject to get into here, but Jon Bois’ Fool Time is a wonderful time and as good of a place to start as any. (‘Cable Time’ is no coincidence.)
That electrical signal has noise - that is, some of what you get on the receiving end is not what you put in. Coaxial internet cables do a remarkably good job of shielding that wire, but no electrical system is perfectly noise free. Happily, the noisy-channel coding theorem tells us that for any noisy channel, you can construct an encoding that will reliably communicate data.
Famously in Claude Shannon & Warren Weaver’s The Mathematical Theory of Communication, which may be the most important mathematical result in computing history. Great book and surprisingly readable.
You have to know how noisy it will be ahead of time. If it turns out to be quieter than you expected, no data is lost, but you’ll have sent at less than your maximum throughput. If it turns out to be noisier than you expected, you’ll lose some of the data, which is usually much worse than missing out on a little throughput.
As it turns out, this noise is not constant. The type and intensity of that noise depends on what’s actually happening in real life in and around the cable. High demand in the local electrical grid can make the cables ‘noisy’, and so can thunderstorms.
Wires with electricity running through them are tiny electromagnets, after all.
Physical wear on the shielding around the cables can fiddle with it, too, not to mention damaged shielding, local moisture, insect activity. There are seasonal and chronological patterns to this data. Less load on the system means less noise: as people go to bed, they turn their lights and computers off, electrical demand drops off, and the local cable internet grid literally quiets down.
The most efficient service will come from using a digital-to-analog encoding that is just loss robust enough for the local conditions. You can use a more efficient and less robust encoding in ‘quiet’ areas and fall back to the heavy-duty stuff so that your customers in the ‘loud’ areas still get reliable internet, even if it’s slower. To properly choose those encodings, you need good data.
The cable modems - and the CMTS (Cable Modem Termination Station/System) they connect to - the big router on the other side - has all sorts of internal statistics on packet latency, % drop, local electrical noise, etc.
As you collect more data, you might be able to make models that can detect (or even predict!) these kinds of problems, mitigating them before anyone calls you to complain.
An ISP I worked for used to have an API that let their services query the Cable Modems and CMTSes for this kind of local data. Each of their own teams could ask for the data they needed, when they needed it, directly from the modems.
For an individual service, this was trivial to implement and to understand.
Note: from now on, I will just say ‘modems’ and mean both cable modems and CMTSes.
At first, this worked well: it was self-serve and straightforward. As more and more services started asking for more and more data, the pretty graph above started to look a little like this, which was not so good:
The ISP had hundreds of services and millions of modems, and many of these services were making dozens of simultaneous calls. Soon the ISP found out that their performance was degrading because the metadata traffic - was starting to overwhelm the ordinary internet traffic!
This well-intentioned performance ‘solution’ had become a problem. Well, at least four problems:
Let’s take a step back and think about our evaluation criteria. What are the different groups here, and what do they want?a
Let’s turn this into more concrete, measurable goals.
MaxAge ago (where we choose MaxAge - say, 30 seconds).MaxAge cycle. (It can’t be at most once, since any jitter at all would break that guarantee). Not twice per consumner per MaxAge, twice at all.All three of these indicate that collecting and serving the data should be separate services.
Without compromising on the above, we want to do this as cheaply as possible. “Cheap” means
Pricing Heuristics
A good way to get a sense of these relative costs - in dollars - is to look at AWS’s ec2 on-demand pricing page. Don’t pay too much attention to the specific numbers, but hold one parameter still and go ‘up’ and ‘down’ in various capabilities to get a sense of the % increase in price for, say, 64GiB of RAM vs 128GiB.
With these criteria in mind, now was the time to design a high-level solution to the problem. There are probably a variety of ways to solve this, but they settled on a paired set of services - cablewatch and cableshow - and a database to serve as a cache between them.
cablewatch asks the modems for metadata and caches them in cabledb.cableshow reads the db and distributes the cached data to services that ask for it.The following graph compares the two architectures:
cablewatch & cableshow vs direct self-serve
Let’s talk about how this design attempts to solve the problems listed above.
cablewatch can collect the data, which is stores for later retrieval via a relational database.cablewatch collects all of the data at regular intervals and never does more, regardless of how insistent the downstream consumers are.cablewatch for exactly what they want (the implementation used graphql, but there’s a variety of ways to do this)_.cablewatch only retrieves exactly that data rather than filtering too much. Happily, relational databases are very good at this.cableshow must be independent of cablewatch, so failures do not ‘spread’ to the modems themselves.cableshow should be able to scale up independently as load increases.cableshow should rate limit it’s consumers to force them into good behavior: it’s better to drop some requests and be able to serve others than be able to serve no one at all.We are now pretty confident that the solution above will solve our problem at the high level, but it’s not as simple as spinning up two new programs and a database - for one thing, what language should those programs be in, and why is it Go? What database(s) should we use? Why? How and where should we deploy?
‘Cable Time’: Design Decisions: ‘Problems’:
- What languages and/or databases would you use for this problem? Why?
- Reflect on the design process for the last major program or library you wrote. Was the process correct? What did you do right? What did you do wrong?
Then there are more specialized questions having to do with this specific problem:
cablewatch:Should this be one system or many? if ‘many’, how many, how do we partition the load? How do we survive cablewatch going down?
cableshow:Assuming this is many instances, how do we balance traffic? how do we detect ‘bad actors’? what’s our rate limiting and mirroring strategy? how do we recover after outages?
cabledb:This is a ton of data - many, many TiB, too big for individual hard drives or even servers. this means a distributed system of some kind. How do we partition the load to be retrieved across the database? How will this partitioning impact read times for consumers?
Part of the solution involved partitioning the dataset via the Object Identifier (OID). (More on these later, it’ll be important - but not quite yet).
Each individual cable modem or CMTS has a unique OID, so at most one cablewatch instance and at most one cabledb shard will be responsible for any given modem or CMTS (assuming we don’t over-replicate for reliability). This has the same amount of total write load on both the DBs and the cable modems/CMTSes as the original system, and should ‘spread out’ the read load. This protects the system somewhat, but increases the total amount of work for reads and may cause additional latency if what used to be a single read on the DB now must become multiple reads spread across different databases.

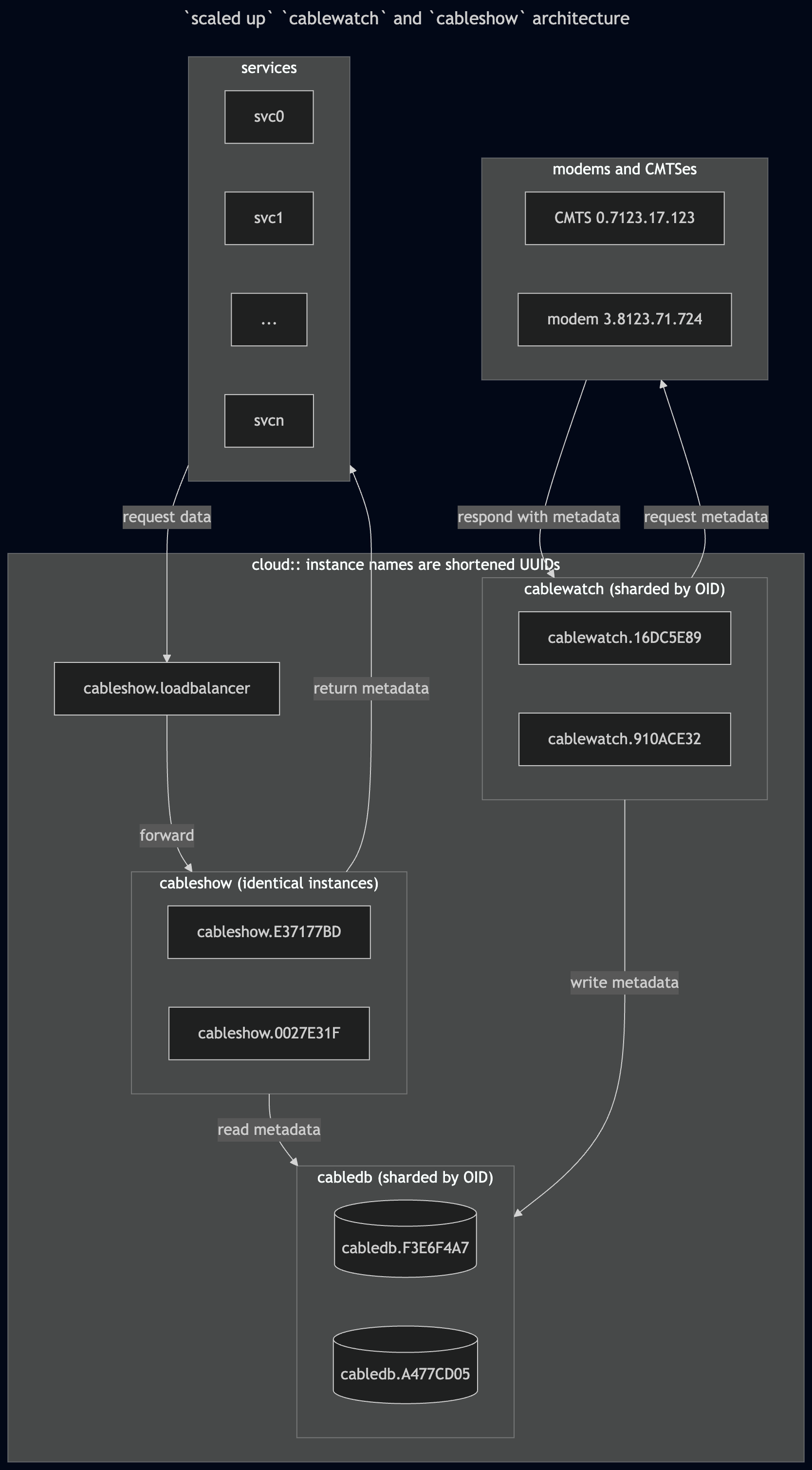

With partitioning in mind, the solution looks like this:
Proper partitioning can make a huge difference in read latency. Ideally, partitions should be arranged both so the usual read patterns match the distribution of the data - but this may cause spikes in load on particular nodes. If you’re interested in questions like this, Martin Klepmann’s Designing Data-Intensive Applications is the best book I know of. It just came out with a second edition which I have not yet read, but I have to imagine it’s great.
That said, partitioning is one of those things that only starts mattering at very large scales, and even then, most of the time you don’t need it. Don’t add partitioning - or any kind of complex trick to a system that doesn’t need it
This was a solid design and it was time to move on to implementation.
The ISP developed according to this plan, building a new team of engineers to run it, including a mid-level named ‘Efron Licht’. (This is where I entered the story). The new architecture worked pretty well and things went more or less according to plan, always a pleasant surprise in software. However, cableshow was RAM-hungry, with steady-state RAM consumption of about 90GiB and peaks of up to 130GiB. Our cloud provider had no 150GiB option, jumping straight from 128GiB to 256GiB machines, which were extremely expensive at the time - expensive enough that if we could cut that ram consumption, it could save us hundreds of thousands a year in cloud costs.
We were actually under budget in cloud costs compared to other departments. ISPs spend money like water.
I got obsessed with the problem. Was there some way to knock down memory usage without compromising on other factors? A memory profile of cableshow might show us the bottleneck that was costing us so much money. If you’re using Go, the best way to do this is pprof.
pprof: a practical guidepprof is a profiler/analyzer originally implemented in C++. It does the analysis of profiles, not the collecting. That’s the job of the go runtime (specifically, runtime/pprof), which collects metrics and can output them in pprof’s preferred format.
go tool pprof.pprof outside go
pprof is most associated with Go and C++, but you can use it in other languages via libraries like
pypprof(python) andjpprof(java). Give it a shot!
runtime/pprofThis library contains the low-level tools to enable, disabled, and export performance profiles. Usually, you prefer:
net/http/pprofThis library automatically collects performance profiles and lets you run a HTTP server that both serves that data out for clients (like pprof itself) AND provides a nice interactive webserver you can visit in your browser, usually at localhost:6060/debug/pprof.
go test: flagsThe go test tool contains built in support for exporting pprof profiles. We’ll do this later.
- julia evans: profiling go programs with pprof
- russ cox & shengou ma: go.dev/blog/pprof: profiling go programs
go tool pprof --helpis always a good place to look, but is extremely terse.
pprof: example: profiling gitlab.com/efronlicht/ewasteWe need something to profile. Since this is a tutorial, it would be nice if we had an example where we knew ahead of time where the performance hotspots would be. Happily, I already have the perfect program for this: ewaste - a program to deliberately waste resources. ewaste wastes CPU time by finding primes, memory by allocating and then writing (so as to force a page fault and ‘really’ allocate), and disk by opening, writing, and syncing files. I updated ewaste to run a pprof server at localhost:6060 so we have a simplified environment to learn about pprof.
This may sound crazy, but it’s useful to try and reproduce errors in other programs. IIRC I built it to find a weird interaction between NVIDIA drivers, Docker, and RAM.
Let’s see what happens when we fire up an ewaste interactive program.
1#!/usr/bin/env bash
2$ ewaste
3serving pprof at http://localhost:6060/debug/pprof
4CPU Profile:
5 go tool pprof http://localhost:6060/debug/pprof/profile
6Heap Profile:
7 go tool pprof http://localhost:6060/debug/pprof/heap
8entering interactive mode. type `help` for usage instructions.
9(ewaste)> help
10HELP: try cpu|mem|disk followed by a number and optional unit. For example: `cpu 4`, `mem 512 mib`, `disk 10 gib`
11(ewaste)> cpu 3
12cpu: 3 cores, mem: 0 allocs, 0 B, disk: 0 files, 0 B
13(ewaste)> mem 2 gib
14cpu: 3 cores, mem: 1 allocs, 2 GiB, disk: 0 files, 0 B
We should now have three cores busily finding primes and a big block of wasted memory. Let’s go find them. First, we’ll run a cpu profile, which collects statistical data on what instructions are executed over a period of time.
pprof: cPU profilepprof: cpu profile: collecting the profilego tool pprof [-seconds n] will automatically fetch the CPU profile and enter an interactive session.
1#!/usr/bin/env bash
2# profile for 5 seconds, then open an interactive pprof session.
3$ go tool pprof -seconds 5 http://localhost:6060
4
5Fetching profile over HTTP from http://localhost:6060/debug/pprof/profile?seconds=5 # this is the actual HTTP request to download the profiling file.
6Please wait... (5s) # profiling happens here
7Saved profile in /home/efron/pprof/pprof.ewaste.samples.cpu.002.pb.gz
8File: ewaste
9Build ID: 7029da92c5ec77a7e6134f7ce2adb8feb4f8b467
10Type: cpu
11Time: 2026-03-03 16:17:36 PST
12Duration: 5s, Total samples = 14.89s (297.53%) # note that we have more than 100%! 100% means 100% of ONE processor. modern computers have many processors.
13Entering interactive mode (type "help" for commands, "o" for options)
pprof: cpu profile: finding expensive functions with topWe’ll use the top subcommand to find the functions that are the biggest consumers of CPU cycles. In an interactive pprof session, top [n] will show us the n highest users of CPU time.
1# still in interactive session...
2(pprof) top 20
3Showing nodes accounting for 14880ms, 99.93% of 14890ms total
4Dropped 1 node (cum <= 74.45ms)
5 flat flat% sum% cum cum%
6 8320ms 55.88% 55.88% 14890ms 100% main.wasteCPU
7 2660ms 17.86% 73.74% 4050ms 27.20% runtime.chanrecv
8 1620ms 10.88% 84.62% 2080ms 13.97% context.(*cancelCtx).Done
9 1390ms 9.34% 93.96% 1390ms 9.34% runtime.empty
10 460ms 3.09% 97.04% 460ms 3.09% sync/atomic.(*Value).Load (inline)
11 430ms 2.89% 99.93% 4480ms 30.09% runtime.selectnbrecv
pprof: understanding topcumulative (%) - total percentage of time spent in that function, rounding to the nearest 0.1%.cum (ms) - sum of total time spent in that function for all CPUs. this is why a 5s sample can have a function which takes nearly 15s - of cumulative time.flat (%) - percentage of time spent in that function, but not it’s subfunctions. that is, the percentage of CPU time spent with the program counter literally executing a statement inside that function.sum% - flat %+ (prev sum% or 0)Looks like wasteCPU and it’s subfunctions take up all the time, as we’d expect. However, wasteCPU itself is only taking slightly more than half. Looks like the progran’s taking a good amount of time calling context.Done() and receiving from a channel.
Knowing which function calls are taking the time is handy, but it would be better if we could localize further - say, find the exact lines where the processor is spending it’s time. Happily, we can. list <pattern> in an interactive pprof session will show us where time is being spent in functions that match the pattern.
pprof: breaking down function costs with listThe list subcommand outputs annotated source code. Let’s try it out:
1// still in previous interactive session
2(pprof) list wasteCPU
3Total: 14.96s
4ROUTINE ======================== main.wasteCPU in /home/efron/go/src/gitlab.com/efronlicht/ewaste/main.go
5 7.98s 14.94s (flat, cum) 99.87% of Total
6 . . 188:func wasteCPU(ctx context.Context) []int {
7 140ms 140ms 189: primes := append(make([]int, 0, 4096), 2, 3, 5, 7, 11, 13, 17, 19, 23)
8 . . 190:SPIN:
9 . . 191: for {
10 . . 192: select {
11 2.17s 9.13s 193: case <-ctx.Done(): // runtime.chanrecv(context.(*cancelCtx).Done)
12 10ms 10ms 194: return primes
13 . . 195: default:
14 290ms 290ms 196: for i := primes[len(primes)-1]; i < math.MaxInt32; i += 2 {
15 1.10s 1.10s 197: for _, p := range primes[1:] {
16 4.25s 4.25s 198: if i%p == 0 { // not prime
17 20ms 20ms 199: continue SPIN
18 . . 200: }
19 . . 201: }
20 . . 202: primes = append(primes, i)
21 . . 203: }
22 . . 204:
The cost breakdown looks something like this:
As it turns out, wasteCPU is a prime-finding routine that spends less than half of it’s execution time actually looking for primes!
go trivia: the built-ins
appendandmakelook like functions, but they’re more like special macros, so their flat and cumulative time are identical. On the other hand,case <- EXPRlooks like a control flow expression but really invokes theruntime.chanrecvfunction!
If we were actually trying to find primes, this would be a huge miss. But it is a great opportunity for us to show how micro-optimization can completely change the texture of your hot loop. Let’s see if we can fix this up so we spend most of our time on the ‘real work’.
Caching - that is, reusing intermediate results - is one of the core techniques of good performance. The result of ctx.Done() doesn’t vary from call to call, so let’s move that out of the loop and see if it changes our performance profile.
We move context.Done() to it’s own variable right before the SPIN label, then run the profiler again…
pprof: cpu: examining ‘optimized’ ewaste: 1#!/usr/bin/env bash
2$ go tool pprof --seconds 5 http://localhost:6060/
3Fetching profile over HTTP from http://localhost:6060/debug/pprof/profile?seconds=5
4Please wait... (5s)
5Saved profile in /home/efron/pprof/pprof.ewaste.samples.cpu.006.pb.gz
6File: ewaste
7Build ID: 77b2195bda33dbcdc6681d905d56b0dd1bff4142
8Type: cpu
9Time: 2026-03-03 16:49:26 PST
10Duration: 5s, Total samples = 14.94s (298.60%)
11Entering interactive mode (type "help" for commands, "o" for options)
12(pprof) top
13Showing nodes accounting for 14920ms, 99.87% of 14940ms total
14Dropped 1 node (cum <= 74.70ms)
15 flat flat% sum% cum cum%
16 12920ms 86.48% 86.48% 14940ms 100% main.wasteCPU
17 1010ms 6.76% 93.24% 1570ms 10.51% runtime.chanrecv
18 560ms 3.75% 96.99% 560ms 3.75% runtime.empty
19 430ms 2.88% 99.87% 2000ms 13.39% runtime.selectnbrecv
20
21(pprof) list waste
22Total: 14.94s
1ROUTINE ======================== main.wasteCPU in /home/efron/go/src/gitlab.com/efronlicht/ewaste/main.go
2 12.92s 14.94s (flat, cum) 100% of Total
3 . . 192:func wasteCPU(ctx context.Context) []int {
4 . . 193: primes := append(make([]int, 0, 4096), 2, 3, 5, 7, 11, 13, 17, 19, 23)
5 . . 194: done := ctx.Done() // this used to be the most expensive thing in the program and now its so cheap as to be invisible.
6 . . 195:SPIN:
7 . . 196:
8 . . 197: for {
9 . . 198: select {
10 600ms 2.60s 199: case <-done: // probably this is runtime.chanrecv
11 70ms 70ms 200: return primes
12 . . 201: default:
13 300ms 300ms 202: for i := primes[len(primes)-1]; i < math.MaxInt32; i += 2 {
14 490ms 490ms 203: for _, p := range primes[1:] {
15 11.18s 11.20s 204: if i%p == 0 { // not prime
16 30ms 30ms 205: continue SPIN
17 . . 206: }
18 . . 207: }
19 250ms 250ms 208: primes = append(primes, i)
20 . . 209: }
21 . . 210:
22 . . 211: }
23 . . 212: }
24 . . 213:}
Great! Now the cost breakdown looks like this:
Not bad for a single line change. On to memory.
Let’s take a look at memory usage. The heap profile collects a statistical sample of memory operations throughout the entire program’s operation, so it can be retrieved immediately.
Heap profiles work almost exactly like cpu profiles.
go tool pprof localhost:6060/debug/pprof/heap will retrieve the sample.
1#!/usr/bin/env bash
2go tool pprof localhost:6060/debug/pprof/heap
3# <omitted>
4Entering interactive mode (type "help" for commands, "o" for options)
Just like before, we can use top and list to find the hot spots.
top (2) 1(pprof) top
2Showing nodes accounting for 17694.61kB, 99.81% of 17728.53kB total
3Dropped 207 nodes (cum <= 88.64kB)
4 flat flat% sum% cum cum%
5 9000.02kB 50.77% 50.77% 9000.02kB 50.77% main.wasteMem
6 8600kB 48.51% 99.28% 8600kB 48.51% main.wasteCPU
7 94.15kB 0.53% 99.81% 94.15kB 0.53% runtime.mallocgc
8 0.44kB 0.0025% 99.81% 9000.69kB 50.77% main.main
9 0 0% 99.81% 9002.44kB 50.78% runtime.main
10
Let’s dig a little deeper in and see where our memory is actually being used. We can use list and a regexp to find the actual code where our memory is being used.
Both of those functions contained the word waste, so let’s start with that…
Note: this
listis from a different run, so the numbers aren’t going to match the above. Don’t worry about it.
list and regexp 1$ (pprof) list waste
2 8.79MB 8.79MB (flat, cum) 7.35% of Total
3 . . 314:func wasteMem(n int) {
4 8.79MB 8.79MB 315: m := make([]byte, n)
5 . . 316: rng.Read(m)
6 24B 24B 317: wastebuf = append(wastebuf, m)
7 . . 318: wasted.mem.allocs++
8 . . 319: wasted.mem.bytes += n
9 . . 320: io.Discard.Write(m)
10 . . 321:}
It’s really that easy. Don’t guess where your performance problems are, measure and find out.
In this case, of course, there’s nothing to optimize - these functions are designed to waste resources. But armed with this knowledge, it’s time to look back at cableshow.
pprof: other profilesWhile the CPU and Heap (memory) profiles are by far the most common and useful profilers, they’re not the only ones. The documentation for
runtime/pprof.Profileis the place to learn more. > I’ll reproduce part of it’s summary here:
goroutine- stack traces of all current goroutines
goroutineleak- stack traces of all leaked goroutines
allocs- a sampling of all past memory allocations
heap- a sampling of memory allocations of live objects
threadcreate- stack traces that led to the creation of new OS threads
block- stack traces that led to blocking on synchronization primitives
mutex- stack traces of holders of contended mutexes
(or: or how I saved >$300k/y with a handful of lines)
I told you that story so I could tell you this one: how I optimized cableshow to save the ISP $300k/y.
I hooked up the heap profiler to a few of our production cableshow instances to figure out what was using all that memory.
It looked something like this:
formatOID(int) string and parseOID(string) intThis kind of split is not unusual at all when profiling a program - hot spots are the rule, not the exception.
This is actually what you want to find. If your performance problems are spread out without any obvious locus, they’re likely at a higher architectural level and much harder to fix. Clearly, performance improvements in formatOID and parseOID would pay off - especially formatOID.
cableshow: overview: Object Identifiers (OIDs)Let’s quickly review OIDs.
An object identifier is a series of period-separated decimal numbers representing a hierarchical system, not dissimilar to an IPv4 address, but an OID is not limited to four sections of 0-255.
To quote Harald T Alvestrand:
Object identifiers are, basically, strings of numbers. They are allocated in a hierarchical manner, so that, for instance, the authority for “1.2.3” is the only one that can say what “1.2.3.4” means.
Within the ISP, OIDs were at most five sections of at most three digits each - that is, the largest possible OID was 999.999.999.999.999. 999,999,999,999,999 ~= 2^50, which means it easily fits in an int64. Some of the ISP’s services treated the OID as a string, and some treated it as an int64. Internally, we treated it as an int64, so that 999.000.999.999.999 and 999.0.999.999.999 would be treated the same, but our SNMP client and some of our downstream customers wanted it as a string. This meant we were doing multiple conversions per cable modem per customer.
Let’s take a quick look at the original code before we jump straight to solutions.
cableshow.formatOID: first attempts: FormatOIDFoolish and FormatOIDNaiveWe’d always had the idea that this code would be at least a little performance sensitive. The very first pass at this code never made it past review for that reason - there’s some level of ‘defensive’ performance programming you should always do. I’ll present both and their benchmarks here:
1
2const N_SECTIONS = 5
3const MUL = 1000
4const MAXOID int64 = (MUL * MUL * MUL * MUL * MUL) - 1 // the maximum OID we can represent with this format, which is 999.999.999.999.999.
5const maxStrLen = len(`999.999.999.999.999`) // five sections of three digits plus four dots.
6
7// the original version of this code, rejected at code review.
8// this is the kind of code you should never let in your codebase.
9// in fact, the modern go analyzers will automatically warn you about things like this.
10// https://pkg.go.dev/golang.org/x/tools/go/analysis/passes/modernize#hdr-Analyzer_stringsbuilder
11func formatOIDFoolish(n int64) string {
12 var dst string
13 for {
14 section := n % MUL
15 n /= MUL
16 dst += strconv.FormatInt(section, 10) // this allocates two new strings on the heap for each section: one for the formatted section and one for the new dst string.
17 if n == 0 {
18 break
19 }
20 dst += "." // this also allocates a new string on the heap.
21 }
22 return dst
23}
24
25// a sensible, straightforward conversion of an integer to an OID string.
26// this was the original implementation that passed review and perfectly fine code.
27func formatOIDNaive(n int64) string {
28 var buf bytes.Buffer
29 for {
30 section := n % MUL
31 n /= MUL
32 formatted := strconv.FormatInt(section, 10) // usually allocates.
33 buf.WriteString(formatted) // allocates if the buffer needs to grow, which will happen at least once per OID and probably log2(MUL) times per OID on average.
34 if n == 0 {
35 break
36 }
37 buf.WriteByte('.') // more to go, so write a dot. may allocate if the buffer needs to grow.
38 }
39 return buf.String() // always allocates.
40}
cableshow.formatOID: Benchmarking FormatOIDNaive and FormatOIDFoolishBenchmarks exist to compare solutions for a known performance bottleneck. Now that we have a bottleneck - formatOID - now’s the time to write a benchmark.
The basic form of a go benchmark is simple:
1func myfunc() {/* code goes here*/}
2func BenchmarkMyFunc(b *testing.B) {
3 for b.Loop() {
4 myfunc()
5 }
6}
Benchmarks are so simple that it can be easy to write bad ones. For example, if we only ever benchmark a specific OID,
we learn the performance of our algorithm for that specific one, not OIDs in general. It is a good idea to have randomized input to benchmarks that approximates realistic input data. Ideally, you should benchmark both against synthetic data and against real samples the kind of data you want to process in production.
Here, we just generate random OIDs:
1// generate random OIDs in the range [0, 999999999999999) as integers.
2func randOIDs(n int64) []int64 {
3 oids := make([]int64, n)
4 for i := range oids {
5 oids[i] = int64(rand.IntN(999_999_999_999_999 + 1))
6 }
7 return oids
8}
9var o = randOIDs(1000) // both of our benchmarks should use the same OIDs
10func BenchmarkFormatNaive(b *testing.B) {
11
12 // try to do as little work that isn't the function you're trying to test in the benchmark.
13 // it would be inappropriate to call randOIDs INSIDE the loop.
14 for i := 0; b.Loop(); i++ {
15 j := i % len(o)
16 _ = formatOIDNaive(o[j])
17 }
18}
19func BenchmarkFormatOIDFoolish(b *testing.B) {
20 for i := 0; b.Loop(); i++ {
21 j := i % len(o)
22 _ = formatOIDFoolish(o[j])
23 }
24}
INPUT:
1#!/usr/bin/env bash
2
3# run benchmarks matching the pattern 'Format'
4$ go test -bench Format -benchmem
OUTPUT:
1goos: linux
2goarch: amd64
3pkg: gitlab.com/efronlicht/blog/articles/startingsystems/bench/oid
4cpu: AMD Ryzen 9 9900X 12-Core Processor
5BenchmarkFormatOIDFoolish-24 7814990 153.8 ns/op 119 B/op 12 allocs/op
6BenchmarkFormatNaive-24 11659200 98.08 ns/op 102 B/op 6 allocs/op
7PASS
8ok gitlab.com/efronlicht/blog/articles/startingsystems/bench/oid 2.336s
The CPU is not very taxed here - anything under 100ns is quite good - but six allocations per format and one per parse certainly can add up.
cableshow.formatOID: benchmarks: problemsformatOID and parseOID to reduce the total number of allocations. Does knowing the maximum possible length of the OID help you?go tool objdump. See my article Go Quirks & Tricks 3 for an example.gitlab.com/efronlicht/fmtbench.cableshow.formatOID: optimization #1: pre-allocation and strings.BuilderFormatOID seems like the obvious place to start, since it’s doing far more allocations. Two small optimizations should help a lot:
strings.Builder instead of bytes.Buffer to save one allocation per OIDcableshow.formatOID: #1: pre-allocation: code 1// use strings.Builder instead of bytes.Buffer, which saves at least one allocation converting from bytes to OID
2// use an intermediate stack-allocated buffer to format the integer before writing to destination
3// to avoid heap-allocating intermediate strings
4func formatOIDStringBuilder(n int64) string {
5 var dst strings.Builder // use a strings.Builder instead of bytes.Buffer, which is slightly more efficient for building strings.
6 dst.Grow(maxStrLen + 1) // pre-allocate the maximum length of the OID string to avoid multiple allocations as we build it.
7
8 for {
9 section := n % MUL
10 n /= MUL
11 dst.WriteString(strconv.FormatInt(section, 10))
12 if n == 0 {
13 break
14 }
15 dst.WriteByte('.') // more to go, so write a dot. this may allocate if the buffer needs to grow, but it won't allocate for the section.
16 }
17 return dst.String() // allocates a new string on the heap.
18}
19
20// benchmark in oid_bench_test.go...
21
22func BenchmarkFormatOIDStringBuilder(b *testing.B) {
23 o := randOIDs(1000)
24 for i := 0; b.Loop(); i++ {
25 j := i % len(o)
26 _ = formatOIDStringBuilder(o[j])
27 }
28}
cableshow.formatOID: #1: pre-allocation: benchmarksFrom now on, I’m going to format the benchmarks as a table using
gitlab.com/efronlicht/fmtbench. Long-time readers may recognize an older version of this program from my first-ever article, but this one’s brand new.
1#!/usr/bin/env bash
2go install gitlab.com/efronlicht/fmtbench@latest
3go test -bench -benchmem Format | fmtbench
| name | count | ns/op | B/op | allocs/op |
|---|---|---|---|---|
| BenchmarkFormatNaive-24 | 11812275 | 97.50 | 102 | 6 |
| BenchmarkFormatOIDFoolish-24 | 7815867 | 154.1 | 119 | 12 |
| BenchmarkFormatOIDStringBuilder-24 | 15118926 | 78.21 | 38 | 5 |
Estimated memory use: 63 GiB * (38/102) ~= 23.4 GiB
cableshow.formatOID: #1: pre-allocation: profileThis helps a lot, cutting nearly two-thirds of the bytes under the average case, which by itself might be enough to let us use 128GiB machines and save some cash. Let’s see if we can do better, though.
We can use the -memprofile and -memprofilerate flags to get a heap profile of our benchmarks to analyze later with pprof.
profiling rates
Keeping track of literally every operation or allocation is pretty expensive, so most profilers are “sampling” profilers and only track a percentage. You can adjust the profiling rate to
1if you want to catch everything - that’s whatewastedid for clarity. (After all, it wasn’t trying to be efficient).
1#!/usr/bin/env bash
2
3# write a pprof-readable profile to 'mem.out', and sample every single allocation.
4# the actual benchmark times will be completely wrong because profililing is expensive, so throw them away.
5$ go test -bench FormatOIDStringBuilder -memprofile mem.out -memprofilerate 1 2>&1 > /dev/null
6
7# open an interactive pprof session, just like we did with `ewaste`.
8$ go tool pprof mem.out
9(pprof) top
115834.16kB 62.22% 62.22% 15834.16kB 62.22% strings.(*Builder).grow
29507.03kB 37.36% 99.58% 9507.03kB 37.36% strconv.formatBits
30.48kB 0.0019% 99.58% 25360.02kB 99.65% testing.(*B).runN
40 0% 99.58% 25349.20kB 99.61% gitlab.com/efronlicht/blog/articles/startingsystems/bench/oid.BenchmarkFormatOIDStringBuilder
50 0% 99.58% 25341.20kB 99.58% gitlab.com/efronlicht/blog/articles/startingsystems/bench/oid.formatOIDStringBuilder
60 0% 99.58% 9507.03kB 37.36% strconv.FormatInt
70 0% 99.58% 15834.16kB 62.22% strings.(*Builder).Grow
80 0% 99.58% 25350.25kB 99.61% testing.(*B).run1.func
1(pprof) list FormatInt
1ROUTINE ======================== strconv.FormatInt in /usr/local/go/src/strconv/itoa.go
2 0 9.28MB (flat, cum) 37.36% of Total
3 . . 25:func FormatInt(i int64, base int) string {
4 . . 26: if fastSmalls && 0 <= i && i < nSmalls && base == 10 {
5 . . 27: return small(int(i))
6 . . 28: }
7 . 9.28MB 29: _, s := formatBits(nil, uint64(i), base, i < 0, false) // <-- HERE!
8 . . 30: return s
9 . . 31:}
It’s the allocation in formatBits that causes the problem.
cableshow.formatOID: #2: FormatInt -> AppendIntWe’re doing a little too much work: rather than just formatting the bits, we’re formatting the bits and then allocating an intermediate string (via strconv.FormatInt). We could instead format into a preallocated fixed-size buffer that’s large enough to hold any section, and then copy that into the strings.Builder. We can do this using strconv.AppendInt, which is just like strconv.FormatInt, but you can pass it a buffer to skip allocations.
In fact, if you look at the source code, it’s almost identical, but we pass in a buffer…
1func AppendInt(dst []byte, i int64, base int) []byte {
2 u := uint64(i)
3 if i < 0 {
4 dst = append(dst, '-')
5 u = -u
6 }
7 if base == 10 {
8 if i < nSmalls {
9 return append(dst, small(int(i))...)
10 }
11 var a [24]byte
12 j := formatBase10(a[:], i)
13 return append(dst, a[j:]...)
14 }
15 dst, _ = formatBits(dst, i, base, false, true)
16}
Once more into the breach:
1func formatOIDAppendInt(n int64) string {
2 dst := make([]byte, 0, maxStrLen+1) // pre-allocate a byte slice to build the OID string, which will avoid multiple allocations as we build it.
3 for {
4 section := n % MUL
5 n /= MUL
6 dst = strconv.AppendInt(dst, section, 10)
7 if n == 0 {
8 break
9 }
10 dst = append(dst, '.') // more to go, so write a dot. this may allocate if the buffer needs to grow, but it won't allocate for the section.
11 }
12 return string(dst) // allocates a new string on the heap.
13}
14
15func BenchmarkFormatOIDAppendInt(b *testing.B) {
16 o := randOIDs(1000)
17 for i := 0; b.Loop(); i++ {
18 j := i % len(o)
19 _ = formatOIDAppendInt(o[j])
20 }
21}
cableshow.formatOID: #2: FormatInt -> AppendInt: benchmarks1#!/usr/bin/env bash
2go test -bench Format -benchmem ./startingsystems/bench/oid
| name | count | ns/op | B/op | allocs/op |
|---|---|---|---|---|
| BenchmarkFormatNaive-24 | 12303301 | 96.18 | 102 | 6 |
| BenchmarkFormatOIDAppendInt-24 | 32016249 | 38.02 | 23 | 1 |
| BenchmarkFormatOIDStringBuilder-24 | 14865608 | 79.25 | 38 | 5 |
This looks great. We’re down to a single allocation and an estimated memory use for string formatting of around 16GiB (63 GiB) * (23 / 102) ~= 14.2 GiB).
Looks great. We’re running in a third the time and a fifth the memory.
strings.Builder is more efficient than bytes.Buffer. Why? Examine the source code to find out. Is this a trick you should use? Why or why not?cableshow.formatOID: #3: string tablesIt seems like we’re operating close to our theoretical maximum: 38 nanoseconds is very fast, and for randomly distributed strings, you can’t do better than one allocation per string on average. For a general-purpose conversion algorithm - like one you’d put in an oid library - you’d probably want to stop here. In fact, when I actually had this job and did this optimization, I did stop here, because I couldn’t think of any way to do better. But I’m a much better system programmer now than I was back then, and it turns out there’s still plenty of room for improvement.
Pushing allocations to the back of our mind for now, let’s take another look at the CPU profile to see if we can find some further opportunities for savings.
cableshow.formatOID: #3: examining the profile of optimization #21#!/usr/bin/env bash
2go test -cpuprofile=cpu.out -bench AppendInt -benchmem . 2>&1 > /dev/null
3go tool pprof cpu.out
4(pprof) top
1Showing top 10 nodes out of 59
2 flat flat% sum% cum cum%
3 360ms 28.35% 28.35% 360ms 28.35% runtime.memmove
4 320ms 25.20% 53.54% 630ms 49.61% strconv.formatBits
5 170ms 13.39% 66.93% 1180ms 92.91% gitlab.com/efronlicht/blog/articles/startingsystems/bench/oid.formatOIDAppendInt
6 110ms 8.66% 75.59% 750ms 59.06% strconv.AppendInt
7 80ms 6.30% 81.89% 150ms 11.81% runtime.mallocgcSmallNoscan
8 60ms 4.72% 86.61% 60ms 4.72% runtime.futex
9 40ms 3.15% 89.76% 190ms 14.96% runtime.mallocgc
10 20ms 1.57% 91.34% 20ms 1.57% runtime.nextFreeFast (inline)
11 20ms 1.57% 92.91% 20ms 1.57% runtime.publicationBarrier
12 20ms 1.57% 94.49% 260ms 20.47% runtime.slicebytetostring
Well, probably not much we can do about runtime.memmove, but is there some way we can avoid formatBits and AppendInt?
Here’s where knowledge of our problem domain kicks in. Unlike a general purpose OID algorithm, we know that each subsection of our OIDs are between 0 and 999, with a . at the end for every one but the last one. This brings two tricks to mind:
strconv.. than those that don’t - only the last one doesn’t. If we store the strings with the . at the end, we’ll do less work most of the time.cableshow.formatOID: #3: string tables: generation with genoidtableLet’s write a program to generate the oid table: genoidtable
1// genoidtable.go generates a table with every possible OID subsection
2package main
3
4import (
5 "fmt"
6)
7
8func main() {
9 fmt.Print(`
10const formatTable = "`)
11 for i := range 1000 {
12
13 fmt.Printf("%3d.", i) // pre-format the section with a dot, padding with spaces to ensure consistent length so we can slice directly into it.
14 if i%100 == 0 && i != 0 {
15 fmt.Println(`"+`) // add a newline every 100 sections so badly programmed IDEs like VSCode don't choke on them.
16 fmt.Print(`"`)
17 }
18 }
19 fmt.Println(`"`)
20
21}
Which gives an output that looks like this:
cableshow.formatOID: #3: string tables: generated output1package oid
2
3// generated by ./cmd/genoidconv, which is a simple program that generates a table of pre-formatted sections of the OID. this allows us to convert an integer back to an OID string with only a single allocation, which is the final string. the conversion code can slice directly into this table to get the pre-formatted section, which is much faster than using strconv.FormatInt for each section.
4const formatTable = " 0. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27. " /* many omitted */
5+ /* many omitted*/ ".992.993.994.995.996.997.998.999."
The stdlib does this for two-digit integers - it’s where I learned the trick.
This certainly costs us some ram - slightly under 4KiB, but with this this table in our pocket, we can write an even faster version of formatOID:
1// conversion of an integer back to an OID string with only a single allocation and with extremely fast lookup by
2// pre-calculating a table with all possible subsections of the OID. this allows us to convert an integer back to an OID string with only a single allocation, which is the final string. the conversion code can slice directly into this table to get the pre-formatted section, which is much faster than using strconv.FormatInt for each section.
3// see cmd/genoidconv for the code that generates the formatTable constant.
4func formatOIDStringTable(n int64) string {
5 var buf [maxStrLen + 1]byte // one extra for trailing '.' which we'll strip off.
6 var i int
7 for range N_SECTIONS {
8 section := n % MUL
9 off := 4 * section // each section has four bytes reserved for it in the conversion table, so we can calculate the offset easily.
10 // we do need to shift a little bit to account for the fact that the sections are not all the same length.
11
12 var formatted string
13 switch {
14 case section >= 100: // `ddd.`
15 formatted = formatTable[off : off+4]
16 case section >= 10: // ` dd.`
17 formatted = formatTable[off+1 : off+4]
18 default: // ` d.`
19 formatted = formatTable[off+2 : off+4]
20 }
21 i += copy(buf[i:], formatted) // write the formatted section into the buffer. this will not heap-allocate because we already pre-allocated the buffer.
22
23 n /= MUL // shift down to the next section.
24 if n == 0 {
25 return string(buf[:i-1]) // we parsed the last section. strip off the trailing dot and return the result.
26 }
27 }
28 panic(fmt.Sprintf("too many sections: expected at most %d, got more than that", N_SECTIONS)) // this should be impossible because we only have N_SECTIONS iterations, but we'll panic just in case.
29}
cableshow.formatOID: #3: string tables: benchmarks1#!/usr/bin/env bash
2go test -bench Format -benchmem .
| name | count | ns/op | B/op | allocs/op |
|---|---|---|---|---|
| BenchmarkFormatNaive-24 | 12160269 | 96.79 | 102 | 6 |
| BenchmarkFormatOIDAppendInt-24 | 31243256 | 38.14 | 23 | 1 |
| BenchmarkFormatOIDStringBuilder-24 | 14995860 | 79.24 | 38 | 5 |
| BenchmarkStringTableFormatOID-24 | 50805165 | 23.94 | 23 | 1 |
1#!/usr/bin/env bash
2
3# run the profile...
4go test -cpuprofile=cpu.out -bench StringTable -benchmem . 2>&1 > /dev/null
5go tool pprof cpu.out
6(pprof) top
1 flat flat% sum% cum cum%
2 450ms 37.50% 37.50% 1020ms 85.00% gitlab.com/efronlicht/blog/articles/startingsystems/bench/oid.formatOIDStringTable
3 170ms 14.17% 51.67% 170ms 14.17% runtime.memmove
4 100ms 8.33% 60.00% 100ms 8.33% runtime.nextFreeFast (inline)
5 70ms 5.83% 65.83% 70ms 5.83% runtime.futex
6 60ms 5.00% 70.83% 290ms 24.17% runtime.mallocgcSmallNoscan
This cuts another 40% off our runtime. Let’s take one last look at the CPU profile with list to see if there’s anything else we can do.
1(pprof) list formatOID
1Total: 1.20s
2ROUTINE ======================== gitlab.com/efronlicht/blog/articles/startingsystems/bench/oid.formatOIDStringTable in /home/efron/go/src/gitlab.com/efronlicht/blog/articles/startingsystems/bench/oid/oid.go
3 450ms 1.02s (flat, cum) 85.00% of Total
4 . . 127:func formatOIDStringTable(n int64) string {
5 . . 128: var buf [maxStrLen + 1]byte
6 . . 129: var i int
7 20ms 20ms 130: for range N_SECTIONS {
8 170ms 170ms 131: section := n % MUL
9 10ms 10ms 132: off := 4 * section // each section has four bytes reserved for it in the conversion table, so we can calculate the offset easily.
10 . . 133: // we do need to shift a little bit to account for the fact that the sections are not all the same length.
11 . . 134:
12 . . 135: var formatted string
13 . . 136: switch {
14 . . 137: case section >= 100: // `ddd.`
15 60ms 60ms 138: formatted = formatTable[off : off+4]
16 30ms 30ms 139: case section >= 10: // ` dd.`
17 10ms 10ms 140: formatted = formatTable[off+1 : off+4]
18 . . 141: default: // ` d.`
19 . . 142: formatted = formatTable[off+2 : off+4]
20 . . 143: }
21 130ms 220ms 144: i += copy(buf[i:], formatted) // write the formatted section into the buffer. this will not heap-allocate because we already pre-allocated the buffer.
22 . . 145:
23 . . 146: n /= MUL // shift down to the next section.
24 20ms 20ms 147: if n == 0 {
25 . 480ms 148: return string(buf[:i-1]) // we parsed the last section. strip off the trailing dot and return the result.
26 . . 149: }
27 . . 150: }
28 . . 151: panic(fmt.Sprintf("too many sections: expected at most %d, got more than that", N_SECTIONS)) // this should be impossible because we only have N_SECTIONS iterations, but we'll panic just in case.
29 . . 152:
30 . . 153:}
This is pretty close to the studs.Looks like we’re spending our time doing four things: allocating the final string (480ms), copying the sections (220ms), and taking the modulus (the % operator, 170ms). I don’t think we can optimize this much further without platform-specific tricks.
It still feels like we could avoid some allocations, though - let’s get back to that.
cableshow.FormatOID: #3: ProblemsLine 146 is ‘free’, even though we know division is expensive. Why? Try looking at the generated assembly to find out.
1>> . . 146: n /= MUL // shift down to the next section. 2>> ``` 3 4### `cableshow.formatOID` #4: Interning and Memoization 5 6Is there anything we know about our problem domain that would let us omit some allocations? Well, for one thing, there are 'only' about thirty million cable modems, and they are partitioned in a relatively consistent way across instances, so each instance will only see a few million of them at most. Maybe it would be cheaper to allocate each OID as it came up _exactly once_ and then just hold it in memory for the rest of the lifecycle of the program? This would remove garbage collection of those strings entirely, at the cost of higher RAM usage when there isn't much load. 7 8Let's do some back of the envelope math to see whether this is a sane idea. 9 10#### Optimization 4: Back-of-the-envelope math 11 12We have between 1 and 30 million OIDs in our dataset. We know these OIDs have string representations less than 20 characters long. 13We can store these as unique interned values, using the number as the key in a `sync.Map` and a `unique.Handle[string]` as the value. 14Let's make a rough estimate of how much this will cost: 15 16- 8 bytes per key (the int64) 17- Add 24+16+8 bytes per OID (rounding up to nearest multiple of word size for the string, then adding 16 bytes for the string header (ptr + len) and 8 for the unique.Handle overhead...) 18- ... double that because hash tables aren't densely packed 19- ... and multiply by 1.5x just for overhead (you always undercount) 20- which ends up as (56 _ 2) _ 1.5 = 168 bytes per OID 21- multiply by 30 million... 22- **5,040,000,000 bytes, or a little under 5GiB of RAM, even if we want to hold every single expected OID in memory at the same time.** 23 24This could be dangerous if we're suddenly confronted with millions of new OIDs, but this condition is not likely to suddenly change, because installing millions of new cable modems is 25 26- something the ISP would know about ahead of time 27- a physical task that involves drilling holes, wiring, etc. 28 29#### Optimization 4: `FormatOIDMemoized`: Code 30 31```go 32// lookup the OID in the memoization cache, using the cached result if possible. 33// if no cached result is found, convert the integer to an OID string using the optimized method and update the cache with the new OID and integer. 34// this is safe for concurrent use. 35// the underlying function will take the maps as arguments so we can benchmark it without using globals, 36// but the 'real' implementation will hide the details from our callers, either by providing a Cache type or by using package-level variables. 37func formatOIDMemoized(int2OID *sync.Map, n int64) string { 38 v, ok := int2OID.Load(n) // has someone else already formatted this? 39 if ok { // yes. 40 return v.(unique.Handle[string]).Value() // return the interned string from the cache. 41 } 42 s := formatOIDStringTable(n) // format in the most efficient way we have. 43 interned := unique.Make(s) // intern the string so we only store one copy of it in memory. 44 got, _ := int2OID.LoadOrStore(n, interned) // store that interned string. 45 return got.(unique.Handle[string]).Value() // return the interned string from the cache, which may be the one we just stored or one that another goroutine stored at the same time. 46}
Let’s take a peek at the benchmarks…
1func BenchmarkMemoizedFormatOID(b *testing.B) {
2 o := randOIDs(1000)
3 var int2OID sync.Map
4 for i := 0; b.Loop(); i++ {
5 j := i % len(o)
6 _ = formatOIDMemoized(&int2OID, o[j])
7 }
8
9}
FormatOIDMemorized: Benchmarks1#!/usr/bin/env bash
2go test -bench Format -benchmem .
| name | count | ns/op | B/op | allocs/op |
|---|---|---|---|---|
| BenchmarkFormatNaive-24 | 12167324 | 97.99 | 102 | 6 |
| BenchmarkFormatOIDAppendInt-24 | 31266152 | 38.94 | 23 | 1 |
| BenchmarkFormatOIDFoolish-24 | 7603273 | 154.9 | 119 | 12 |
| BenchmarkFormatOIDStringBuilder-24 | 15368214 | 78.12 | 38 | 5 |
| BenchmarkMemoizedFormatOID-24 | 85718442 | 12.68 | 0 | 0 |
| BenchmarkStringTableFormatOID-24 | 48893323 | 24.62 | 23 | 1 |
Well, that seems about as good as we’re going to get. A couple caveats to keep in mind: formatting isn’t actually “free” - we still allocate on the heap, it’s just that as we repeatedly hit the cache over and over, the average case allocation approaches zero. We still have plenty of stuff in the heap - and it will stay there effectively ‘forever’, even if all possible garbage is collected - but once everything is allocated, we will never need to do it again.
cableshow.formatOID: Optimization #4: Interning and Memoization: Advanced Memory MetricsThe above is probably plenty good reasoning, but if that wasn’t good enough for us and we wanted to find out exactly how much memory was being kept alive by our cache, we could use runtime.ReadMemStats or the metrics package to find out.
cableshow.formatOID: #4: problems: “custom metrics done badly”I got the code for the following section wrong repeatedly. The following code contains at least three errors at two different conceptual levels. What are they, and why?
1>> // call this AFTER any setup and BEFORE b.Loop() to report on allocations and heap growth during operation. 2>> // ... is what this function is supposed to do. 3>> func reportSteadyStateHeapGrowthWRONG(b *testing.B) { // 4>> tb.Helper() 5>> var before runtime.MemStats 6>> runtime.ReadMemStats(&before) // read the mem stats 7>> 8>> tb.Cleanup(func() { // like 'defer' for test scope 9>> var after runtime.MemStats 10>> runtime.ReadMemStats(&after) 11>> b.ReportMetric(float64(after.Mallocs - before.Mallocs), "allocs") 12>> b.ReportMetric(float64(after.HeapAlloc - before.HeapAlloc/1024/1024), "MiB_heap_growth") 13>> }) 14>> } 15>> ``` 16>> ##### Answers: Custom Metrics Done Badly 17>> - Division (3x error) 18>> - cast to float64 happens after subtraction, which can cause unsigned integer wraparound 19>> - cast to float64 happens _before_ division, truncating! 20>> - grouping is wrong: should be (`after.HeapAlloc`-`before.HeapAlloc`). 21>> - no guarantee that `before` doesn't unrelated garbage from previous functions 22>> - no guarantee that `after` hasn't already cleaned up benchmark variables</details> 23 24 25The following code is extremely subtle and can be considered 'advanced material'. 26 27```go 28// report heap stats for a benchmark. 29// call this immediately before b.Loop(). 30// types passed in `keepalive` must be pointer-like (interface, map, slice, chan, func, or pointer, or string) 31func reportHeapStats(b *testing.B, keepalive ...any) { 32 b.Helper() 33 var stats runtime.MemStats 34 // add a metric to the benchmark with label label_mib 35 heap := func(label string) float64 { 36 const MiB = 1024 * 1024 37 runtime.ReadMemStats(&stats) 38 x := float64(stats.HeapAlloc) / MiB 39 b.ReportMetric(x, label+"_mib") 40 return x 41 } 42 for _, v := range keepalive { 43 switch v := reflect.TypeOf(v); v.Kind() { 44 // homework problem: why are these kinds of types "pointer-like"? what is the runtime representation of each type? 45 case reflect.Interface, reflect.Map, reflect.Slice, reflect.Chan, reflect.Func, reflect.Ptr, reflect.String: 46 // nop 47 default: 48 panic(fmt.Errorf("reportSteadyStateHeapGrowth: passed a value type (%s, a %s) to runtime.KeepAlive. Nothing to keep alive: this is a value type", v, v.Kind())) 49 } 50 } 51 52 debug.SetGCPercent(-1) // turn off automatic GC completely for the duration of the benchmark 53 runtime.GC() // cleanup before we read the initial memory stats 54 before := heap("before") 55 56 b.Cleanup(func() { 57 b.Helper() 58 hot := heap("hot") // heap holding EVERYTHING allocated since we turned the gc off. 59 debug.SetGCPercent(100) // restore ordinary GC behavior. 60 runtime.GC() // cleanup 61 cold := heap("cold") // heap after reclaiming everything possible (not including 'nogc') 62 b.ReportMetric(cold-hot, "reclaimed_mib") 63 b.ReportMetric(cold-before, "leaked_mib") 64 65 for _, v := range keepalive { 66 runtime.KeepAlive(v) // tell the compiler (and therefore runtime) we still need this value until AFTER the call to runtime.GC() above. 67 } 68 69 }) 70}
We’ll add that in to each of our benchmarks
1func BenchmarkMemoizedFormatOID(b *testing.B) {
2 o := randOIDs(1000)
3 var int2OID sync.Map
4 reportHeapStats(b, &int2OID) // keep int2OID alive
5 for i := 0; b.Loop(); i++ {
6 _ = formatOIDMemoized(&int2OID, o[i%len(o)])
7 }
8}
And run the benchmark one last time, just to make sure we haven’t missed anything:
1#!/usr/bin/env bash
2go test -bench Format -benchmem ./startingsystems/bench/oid
| name | count | ns/op | cold_mib | hot_mib | leaked_mib | reclaimed_mib | B/op | allocs/op |
|---|---|---|---|---|---|---|---|---|
| BenchmarkFormatNaive-24 | 10417634 | 150.0 | 0.3286 | 1017 | -0.002174 | -1016 | 102 | 6 |
| BenchmarkFormatOIDAppendInt-24 | 31170796 | 42.42 | 0.3289 | 709.0 | -0.007286 | -708.7 | 23 | 1 |
| BenchmarkFormatOIDFoolish-24 | 6862900 | 178.1 | 0.3290 | 781.7 | -0.007286 | -781.4 | 119 | 12 |
| BenchmarkFormatOIDStringBuilder-24 | 14894722 | 85.06 | 0.3288 | 545.6 | -0.007164 | -545.2 | 38 | 5 |
| BenchmarkMemoizedFormatOID-24 | 84051058 | 12.77 | 0.6559 | 0.6867 | 0.3145 | -0.03082 | 0 | 0 |
| BenchmarkStringTableFormatOID-24 | 47326560 | 28.43 | 0.3341 | 1073 | -0.002281 | -1072 | 23 | 1 |
We’ve now proved our point - while this is much, much, much more efficient than any of the other solutions in terms of GC churn, it costs us about 317 bytes per ID (317,600 / 1000) of ‘permanent’ heap storage. It’s worth noting that this is double what our back-of-the-envelope math predicted, despite our generous fudge factors, but we were in the right ballpark.
This is even better than it appears, because we no longer have spikes under high demand, which means we don’t have to pay for headroom to protect ourselves.
Let’s take a look at parseOID before we move on to other targets.
cableshow.parseOIDThere’s a lot less room for improvement here, so I’ll skip straight to showing you the naive and optimized code and explain why it’s faster in the comments.
cableshow.parseOID: code 1// parse an OID of up to MAX_SECTIONS into an integer in a straightforward way using strings.Split and strconv.Atoi. this is not super efficient but it's perfectly reasonable programming.
2func parseOIDNaive(s string) (int64, error) {
3 m := strings.Split(s, ".") // this allocates a slice of strings on the heap, which is always a little expensive.
4 if len(m) > N_SECTIONS {
5 return 0, fmt.Errorf("too many sections: expected at most %d, got %d", N_SECTIONS, len(m))
6 }
7
8 var result int64
9 // parse each section, treating the right hand side as the least significant.
10 for i := len(m) - 1; i >= 0; i-- {
11 n, err := strconv.Atoi(m[i])
12 if err != nil {
13 return 0, fmt.Errorf("invalid section %d: %w", i, err)
14 }
15 if n < 0 || n >= MUL { // each section must be between 0 and MUL, exclusive.
16 return 0, fmt.Errorf("section %d out of range: expected 0 <= n < %d , got %d", i, MUL, n)
17 }
18 result = result*MUL + int64(n)
19 }
20 return result, nil
21}
22
23// parse OIDs with no allocations at all.
24func parseOIDNoAlloc(s string) (int64, error) {
25 var result int64
26 var nsection int
27
28 // rather than using 'strings.Split', we'll manually split it up starting from the back, skipping the slice allocations.
29 for ; nsection < N_SECTIONS; nsection++ {
30 i := strings.LastIndexByte(s, '.')
31 // s[i+1]: is the section we want to parse, not including the dot. if i == -1, this will be s[0], which is correct because we want to parse the whole string.
32 n, err := strconv.ParseInt(s[i+1:], 10, 64) // parse the section as an integer. if this fails, we can return an error immediately.
33 if err != nil {
34 return 0, fmt.Errorf("invalid section: %w", err)
35 }
36
37 if n < 0 || n >= MUL {
38 return 0, fmt.Errorf("section out of range: expected 0 <= n < %d , got %d", MUL, n)
39 }
40 result = result*MUL + int64(n)
41 if i == -1 {
42 return result, nil // we parsed the last section, so we can return the result.
43 }
44 s = s[:i] // remove the parsed section and the dot.
45 }
46 return 0, fmt.Errorf("too many sections: expected at most %d, got at least %d", N_SECTIONS, nsection+1)
47}
Let’s run the benchmarks…
cableshow.parseOID: benchmarks1#!/usr/bin/env bash
2go test -bench Parse -benchmem ./startingsystems/bench/oid
| name | count | ns/op | cold_mib | hot_mib | leaked_mib | reclaimed_mib | B/op | allocs/op |
|---|---|---|---|---|---|---|---|---|
| BenchmarkParseNaive-24 | 29114545 | 51.66 | 0.3339 | 1340 | -0.02577 | -1340 | 48 | 1 |
| BenchmarkParseOIDNaive-24 | 23391009 | 58.48 | 0.3285 | 1092 | -0.02571 | -1091 | 48 | 1 |
| BenchmarkParseOIDNoAlloc-24 | 43778109 | 27.46 | 0.3288 | 0.3602 | -0.03065 | -0.03144 | 0 | 0 |
ParseOIDNoAlloc is twice as fast and uses no heap memory at all. Seems pretty solved to me.
cableshow.parseOID and cableshow.formatOIDWe pushed our new versions to production and started collecting heap profiles on our new, improved program.
Once you’ve solved a bottleneck, take a step back and re-run your profilers and metrics before you move on to the next thing.
Our clear bottleneck was now the SNMP networking code. A glance at pprof told us that the allocations were happening during calls to NewConn:
Note: the specific data here and library used are simplified to make teaching easier.
1package examplesnmp
2type Conn struct {
3 conn net.Conn // underling network connection
4 buf *[0xFFFF]byte // <- allocated for the lifetime of the connection
5 /* other fields omitted*/
6}
7func NewConn(ctx context.Context, oid int) (*Conn, error) {
8 buf := new([0xFF]byte) // <---- HERE!
9 /* much code omitted*/
10
11 c := &Conn{
12 buf: buf
13 /* much code omitted*/
14 }
15 return c, nil
16}
17
18func (c *Conn) ReadPacket() ([]byte, error) {n, err := c.conn.Read(c.buf[:]); return c.buf[:n], err}
19
This was for a simple and sensible reason: SNMP packets were sent over IP/UDP. UDP is stateless: if you miss a packet, it’s gone. Even though most of the packets our modems sent us were a few hundreds bytes, if they did send us one that was larger than our buffer, we’d miss it. The only way to guarantee you catch every packet is to use a buffer at least as large as the largest possible packet - 64kib.
To make it easier to benchmark, let’s get rid of the structs here and just deal with the buffer directly. Instead of reading from the network, we’ll just read from anything, too.
1// read using a preallocated fixed-size buffer, like the original code.
2func FixedBuffer(b *[0xFFFF]byte, read func(b []byte) (n int, err error)) ([]byte, error) {
3 n, err := read(b[:]) // no allocation, but we hold on to the buffer forever.
4 if err != nil {
5 return nil, err
6 }
7 return b[:n], nil // no allocation, but we hold on to the buffer forever.
8}
Allocating a buffer for the lifetime of the collection means you can’t miss and you create no garbage, at the cost of 65k of ballast per conn. For the vast majority of uses, this is perfectly fine - you can have 16 buffers per MB, which means 10k connections will cost you under a GiB. For example, a World of Warcraft server’s 4000 simultaneous connections would use only 250MiB. (Not that WoW uses SNMP, but just as an example). Unfortunately, we didn’t have ten thousand simultaneous connections - we had hundreds of thousands.
My first proposed solution was also straightforward: allocate a big buffer for the read, then copy the data to a smaller buffer once you knew how big the packet was. Then the garbage collector could reclaim the big buffer.
1// read allocating fresh every time.
2func AlwaysAllocate(read func(b []byte) (n int, err error)) ([]byte, error) {
3 b := make([]byte, 0xFFFF) // large allocation!
4 n, err := read(b)
5 if err != nil {
6 return nil, err
7 }
8 return bytes.Clone(b[:n]), nil // small allocation!
9}
It turned out reads are much more common than connections, and allocating a buffer per read is far worse. So much worse it crashed our staging servers. Whoops.
simple.PoolEven though we can have tens of thousands of simultaneous network connections, even the most powerful computers can’t actually read ten thousand packets simultaneously: they have a limited number of cores. In theory, then, we didn’t need to allocate a big buffer per connection, we needed to allocate a buffer per simultaneous read.
One solution to this problem would be allocating buffer per thread, but Go doesn’t have thread-local variables (and they come with a whole host of problems of their own).
A handy data structure for this kind of thing is a shared pool. When you want a buffer, check whether there’s one in the shared pool first and take that if you can. If you can’t, make a new buffer - but either way, return that buffer to the pool when you’re done. This will grow the pool to a steady size that matches your peak simultaneous connections. Under relatively consistent demand the number of allocations should approach zero, at the cost of some ‘steady-state’ wasted memory. (The parallels to the previous optimizations using sync.Map should stick out).
Go contains a very good pool - sync.Pool - but let’s write our own first to get the idea.
simple.Pool 1package readsnmp
2
3import (
4 "sync"
5)
6
7// Simple, type-specific shared pool of buffers using a mutex and slice. Prefer `sync.Pool` to this in real code.
8// Safety: do NOT call `Put` on a buffer that is still in use: this is racy.
9//
10// Usage:
11//
12// var sp SimplePool
13// buf := sp.Get() // get a buffer, possibly making a new one.
14// /* use buf */
15// sp.Put(buf) // return the buffer to the pool for later use.
16type SimplePool struct {
17 mux sync.Mutex // guards stack
18 a []*[0xFFFF]byte // stack of buffers
19}
20
21// Get a buffer, or create a new one if no buffer exists.
22func (sp *SimplePool) Get() *[0xFFFF]byte {
23 sp.mux.Lock()
24 defer sp.mux.Unlock()
25 if len(sp.a) == 0 { // nothing in the pool. make a fresh buffer and hand it out.
26 return new([0xFFFF]byte)
27 }
28 // pop the last buffer off the stack.
29 i := len(sp.a) - 1
30 buf := sp.a[i]
31 sp.a = sp.a[:i]
32 return buf
33}
34
35// Return the buffer to the pool for later use.
36func (sp *SimplePool) Put(b *[0xFFFF]byte) {sp.mux.Lock(); sp.a = append(sp.a, b); sp.mux.Unlock()}
37
38
39// read using a shared pool of 'large' buffers guarded by mutex, copying the result into a newly allocated small buffer.
40func SharedSimplePool(sp *SimplePool, read Read) ([]byte, error) {
41 b := sp.Get()
42 defer sp.Put(b)
43 n, err := read(b[:])
44 if err != nil {
45 return nil, err
46 }
47 return bytes.Clone(b[:n]), nil
48}
sync.Pool.Let’s also compare it to go’s `sync.Pool.
1// read using a shared 'large' buffer via *sync.Pool, copying the result into a newly allocated small buffer.
2func SyncPoolAlwaysAlloc(sp *sync.Pool, read Read) ([]byte, error) {
3 b := sp.Get().(*[0xFFFF]byte)
4 defer sp.Put(b)
5 n, err := read(b[:])
6 if err != nil {
7 return nil, err
8 }
9 return bytes.Clone(b[:n]), nil
10}
Let’s compare the following strategies:
SimplePoolsync.PoolJust like before, we want to have make sure our benchmarks are somewhat realistic. Reads over network connections in our system are
If our benchmarks simulate different conditions, they might give us the right answer to the wrong question!
That means running the benchmarks in parallel on a distribution of data.
Running parallel benchmarks is easy:
1func myFunc() {/* code goes here */}
2
3func BenchmarkMyFuncParallel(b *testing.B) {
4 b.RunParallel(func(p *testing.PB) {
5 for p.Next() {
6 myFunc()
7 }
8 })
9}
Let’s write some utility functions to try and build better benchmarks. Ideally, we’d have benchmarks that included samples captured from real data to best match our problem domain, but we can at least build a variety of synthetic packets that are somewhat realistic.
1// --- helper functions and vars to represent slightly more realistic packets ---
2var (
3 packets [][]byte = buildPackets(100_000)
4 latencies []time.Duration = buildLatencies(100_000)
5)
6
7func buildPackets(n int) [][]byte {
8 packets := make([][]byte, n)
9 for i := range packets {
10 // build a representative packet between 0xFF and 0xFFFF bytes
11 // centered around 400 bytes.
12 const mean, stddev = 400, 200
13 size := int(rand.NormFloat64()*stddev + mean) // avg: mean, normally distributed with stddev
14 size = max(0xFF, min(0xFFFF, size)) // clamp 0xFF<=size<=0xFFFF
15 b := make([]byte, size)
16 b[rand.IntN(size)] = byte(rand.IntN(256)) // set a random byte to make sure the compiler doesn't optimize out making the slice
17 packets[i] = b
18 }
19 return packets
20}
21
22// build a slice of n latencies exponentially distributed around a mean of 5ms
23func buildLatencies(n int) []time.Duration {
24 latencies := make([]time.Duration, n)
25 for i := range latencies {
26 // latency is extremely variable. let's use an exponential distribution with a mean of 5ms to model it.
27 // to quote the documentation of rand.ExpFloat64:
28 d := time.Duration(rand.ExpFloat64() / float64(5*time.Millisecond))
29 // exponential distributions can go all over the place, so let's put a cap on them.
30 d = max(time.Millisecond, d)
31 d = min(time.Second, d)
32 latencies[i] = d
33
34 }
35 return latencies
36}
37
38// fakeUDPRead simulates a packet read into 'b'. assume a latency evenly distributed between 1ms and 50ms
39func fakeUDPRead(b []byte) (n int, err error) {
40 i := rand.IntN(len(packets))
41 delay, packet := latencies[i], packets[i]
42 time.Sleep(delay)
43
44 n = copy(b, packet)
45 if n < len(packet) {
46 return n, io.ErrShortBuffer
47 }
48 return n, nil
49
50}
Let’s put it all together and write our benchmarks.
1func BenchmarkFixedLargeBuffer(b *testing.B) {
2 // vary the # of conns to see how the different strategies perform under different levels of contention.
3 for conns := 100; conns <= 100_000; conns *= 10 {
4
5 b.Run(fmt.Sprintf("%010d", conns), func(b *testing.B) {
6 b.SetParallelism(conns) // tell the benchmark to use up to `conns` simultaneous goroutines during b.RunParallel.
7 buf := make([][0xFFFF]byte, conns)
8
9 var i atomic.Int64
10 i.Store(-1)
11 b.ResetTimer()
12 reportHeapStats(b, &buf)
13
14 b.RunParallel(func(p *testing.PB) {
15 b := &buf[i.Add(1)%int64(len(buf))]
16 for p.Next() {
17 readsnmp.FixedBuffer(b, fakeUDPRead)
18 }
19 })
20 })
21 }
22}
23
24func BenchmarkAlwaysAllocate(b *testing.B) {
25
26 for conns := 100; conns <= 10_000; conns *= 10 { /*100_000 crashed my computer, so we do slightly less ;) */
27 b.Run(fmt.Sprint(conns), func(b *testing.B) {
28 reportHeapStats(b)
29 b.SetParallelism(conns)
30 b.ResetTimer()
31 b.RunParallel(func(p *testing.PB) {
32 for p.Next() {
33 readsnmp.AlwaysAllocate(fakeUDPRead)
34 }
35 })
36 })
37 }
38}
39func BenchmarkSyncPoolAlwaysAlloc(b *testing.B) {
40 for conns := 100; conns <= 100_000; conns *= 10 {
41 b.Run(fmt.Sprint(conns), func(b *testing.B) {
42 b.SetParallelism(conns)
43 pool := sync.Pool{New: func() any { return new([0xFFFF]byte) }}
44 reportHeapStats(b, &pool)
45 b.RunParallel(func(p *testing.PB) {
46 for p.Next() {
47 readsnmp.SyncPoolAlwaysAlloc(&pool, fakeUDPRead)
48 }
49 })
50 })
51 }
52}
53func BenchmarkSyncPoolFixedSmall(b *testing.B) {
54 for conns := 100; conns <= 100_000; conns *= 10 {
55 b.Run(fmt.Sprint(conns), func(b *testing.B) {
56 b.SetParallelism(conns)
57 pool := sync.Pool{New: func() any { return new([0xFFFF]byte) }}
58 small := make([][0x400]byte, conns)
59 var i atomic.Int64
60 i.Store(-1)
61 reportHeapStats(b, &pool, &small)
62 b.RunParallel(func(p *testing.PB) {
63 smallbuf := &small[i.Add(1)%int64(len(small))]
64 for p.Next() {
65 readsnmp.SharedLargeFixedSmall(&pool, smallbuf, fakeUDPRead)
66 }
67 })
68
69 })
70 }
71}
72
73func BenchmarkSimplePool(b *testing.B) {
74
75 for conns := 100; conns <= 1_000_000; conns *= 10 {
76 b.Run(fmt.Sprint(conns), func(b *testing.B) {
77 b.SetParallelism(conns)
78 var sp readsnmp.SimplePool
79 reportHeapStats(b, &sp)
80
81 b.RunParallel(func(p *testing.PB) {
82 for p.Next() {
83 readsnmp.SharedSimplePool(&sp, fakeUDPRead)
84 }
85 })
86 })
87 }
88}
1#!/usr/bin/env bash
2go test -bench . -benchmem . ./bench/readsnmp
The fixed large buffer generates very little garbage but uses too much memory at steady-state.
| name | count | ns/op | cold_mib | hot_mib | leaked_mib | reclaimed_mib | B/op | allocs/op |
|---|---|---|---|---|---|---|---|---|
| BenchmarkFixedLargeBuffer/0000000100-24 | 1683372 | 707.2 | 59.68 | 53.46 | 60.17 | -6.220 | -6.714 | 0 |
| BenchmarkFixedLargeBuffer/0000001000-24 | 9437870 | 125.6 | 177.8 | 115.3 | 180.7 | -62.46 | -65.44 | 0 |
| BenchmarkFixedLargeBuffer/0000010000-24 | 9441368 | 124.7 | 1303 | 678.5 | 1323 | -624.8 | -644.4 | 2 |
| BenchmarkFixedLargeBuffer/0000100000-24 | 9127796 | 129.8 | 12554 | 6304 | 12738 | -6250 | -6434 | 21 |
Always allocating is 10x slower and uses more memory under nearly every circumstance. The ‘cure’ was worse than the disease.
| name | count | ns/op | cold_mib | hot_mib | leaked_mib | reclaimed_mib | B/op | allocs/op |
|---|---|---|---|---|---|---|---|---|
| BenchmarkAlwaysAllocate/100-24 | 759810 | 1518 | 53.73 | 376.2 | -0.005775 | -322.5 | 445 | 1 |
| BenchmarkAlwaysAllocate/1000-24 | 694106 | 1638 | 53.73 | 350.2 | -0.005775 | -296.5 | 447 | 1 |
| BenchmarkAlwaysAllocate/10000-24 | 395817 | 2662 | 53.73 | 240.4 | -0.005867 | -186.7 | 494 | 2 |
note the missing benchmark for 100k here: this crashed my computer.
SimplePool benchmarks`Simplepool performs well under moderate concurrency, saving a lot of ‘cold’ (steady-state) memory at the expense of being slower than the fixed large buffer. Unfortunately, this doesn’t scale well past 10000 or so connections, since everything’s waiting on acquiring a single lock!
| name | count | ns/op | before_mib | cold_mib | hot_mib | leaked_mib | reclaimed_mib | B/op | allocs/op |
|---|---|---|---|---|---|---|---|---|---|
| BenchmarkSimplePool/100-24 | 1823428 | 644.9 | 205.1 | 205.0 | 1129 | -0.02213 | -923.7 | 531 | 1 |
| BenchmarkSimplePool/1000-24 | 1420484 | 749.9 | 762.4 | 764.8 | 2079 | 2.457 | -1314 | 971 | 1 |
| BenchmarkSimplePool/10000-24 | 1682150 | 680.5 | 767.4 | 729.7 | 2176 | -37.73 | -1446 | 877 | 1 |
| BenchmarkSimplePool/100000-24 | 1356668 | 756.1 | 727.1 | 713.1 | 2145 | -14.04 | -1432 | 1096 | 4 |
| BenchmarkSimplePool/1000000-24 | 1 | 3552107187 | 55.03 | 55.10 | 1886 | 0.06305 | -1831 | 1920066344 | 48000010 |
sync.Pool benchmarksUnsurprisingly, the stdlib’s sync.Pool performs the best of all our options.
The stdlib’s sync.Pool solves this problem using sophisticated engineering beyond the scope of this article - that’s advanced systems programming. Take a look at the source for sync.Pool if you want to see how the magic happens.
| name | count | ns/op | before_mib | cold_mib | hot_mib | leaked_mib | reclaimed_mib | B/op | allocs/op |
|---|---|---|---|---|---|---|---|---|---|
| BenchmarkSyncPoolAlwaysAlloc/100-24 | 1591567 | 771.1 | 53.74 | 203.8 | 878.9 | 150.1 | -675.1 | 543 | 1 |
| BenchmarkSyncPoolAlwaysAlloc/1000-24 | 8760234 | 116.6 | 54.76 | 805.1 | 4521 | 750.4 | -3716 | 534 | 1 |
| BenchmarkSyncPoolAlwaysAlloc/10000-24 | 9728583 | 117.0 | 54.76 | 805.8 | 4948 | 751.0 | -4142 | 527 | 1 |
| BenchmarkSyncPoolAlwaysAlloc/100000-24 | 9636267 | 112.1 | 54.77 | 805.1 | 5072 | 750.4 | -4267 | 545 |
So we’re done, right? sync.Pool is as good as it gets? Well, maybe. Let’s think about our problem statement again.
While we must have a large buffer to catch the occasional large packet, most of this time is overkill: most of our packets are small - well under 1K. We could mirror the problem in our solution by giving each connection a small, permanent buffer for average-case reads, borrowing from the sync.Pool only long enough to ‘catch’ the UDP packet. (For unusually large packets, we can allocate - the garbage collector will do fine for occasional exceptions).
Since our average packet is about 400B, 1KiB should be more than enough to handle the vast majority of cases.
1// read using the *sync.Pool's big buffer, copying it into `small` if the packet is small enough to fit,
2// and allocating a new buffer otherwise.
3func SharedLargeFixedSmall(sp *sync.Pool, small *[0x400]byte, read Read) ([]byte, error) {
4 b := sp.Get().(*[0xFFFF]byte) // possible allocation: under steady state, allocations approach 0.
5 defer sp.Put(b)
6 n, err := read(b[:])
7 if err != nil {
8 return nil, err
9 }
10 if n < len(small) { // this is an ordinary packet. copy into small.
11 _ = copy(small[:], b[:n]) // no allocation, but a little bit of copying
12 return small[:n], nil
13 }
14 // 'large' packet. copy it into a new buffer, and return that.
15 return bytes.Clone(b[:n]), nil // moderate allocation.
16}
17
18func BenchmarkSyncPoolFixedSmall(b *testing.B) {
19 for conns := 100; conns <= 100_000; conns *= 10 {
20 b.Run(fmt.Sprint(conns), func(b *testing.B) {
21 b.SetParallelism(conns)
22 pool := sync.Pool{New: func() any { return new([0xFFFF]byte) }}
23 small := make([][0x400]byte, conns)
24 var i atomic.Int64
25 i.Store(-1)
26 reportHeapStats(b, &pool, &small)
27 b.RunParallel(func(p *testing.PB) {
28 smallbuf := &small[i.Add(1)%int64(len(small))]
29 for p.Next() {
30 readsnmp.SharedLargeFixedSmall(&pool, smallbuf, fakeUDPRead)
31 }
32 })
33
34 })
35 }
36}
Let’s run the benchmarks again, just comparing our sync.Pool implementations…
1#!/usr/bin/env bash
2go test -bench SyncPool -benchmem ./bench/readsnmp
| name | count | ns/op | before_mib | cold_mib | hot_mib | leaked_mib | reclaimed_mib | B/op | allocs/op |
|---|---|---|---|---|---|---|---|---|---|
| BenchmarkSyncPoolAlwaysAlloc/100-24 | 1439539 | 803.2 | 47.58 | 197.8 | 808.9 | 150.2 | -611.1 | 554 | 1 |
| BenchmarkSyncPoolAlwaysAlloc/1000-24 | 7669573 | 132.8 | 53.73 | 804.3 | 4060 | 750.6 | -3256 | 547 | 1 |
| BenchmarkSyncPoolAlwaysAlloc/10000-24 | 9495912 | 119.9 | 54.19 | 804.8 | 4851 | 750.6 | -4046 | 529 | 1 |
| BenchmarkSyncPoolAlwaysAlloc/100000-24 | 8037630 | 124.9 | 55.12 | 806.4 | 4398 | 751.3 | -3592 | 566 | 1 |
| BenchmarkSyncPoolFixedSmall/100-24 | 1652472 | 735.4 | 55.32 | 205.3 | 207.5 | 150.0 | -2.227 | 96 | 0 |
| BenchmarkSyncPoolFixedSmall/1000-24 | 8933874 | 127.5 | 57.08 | 807.0 | 820.3 | 749.9 | -13.27 | 89 | 0 |
| BenchmarkSyncPoolFixedSmall/10000-24 | 9068928 | 125.9 | 74.76 | 816.1 | 854.6 | 741.3 | -38.59 | 91 | 0 |
| BenchmarkSyncPoolFixedSmall/100000-24 | 8920342 | 124.9 | 250.5 | 903.6 | 1195 | 653.0 | -291.0 | 122 | 0 |
cableshow: final resultsLet’s take one last look at our three ‘good’ options under heavy load:
| name | count | ns/op | before_mib | cold_mib | hot_mib | leaked_mib | reclaimed_mib | B/op | allocs/op |
|---|---|---|---|---|---|---|---|---|---|
| BenchmarkFixedLargeBuffer/0000100000-24 | 9127796 | 129.8 | 12554 | 6304 | 12738 | -6250 | -6434 | 21 | 0 |
| BenchmarkSyncPoolAlwaysAlloc/100000-24 | 8037630 | 124.9 | 55.12 | 806.4 | 4398 | 751.3 | -3592 | 566 | 1 |
| BenchmarkSyncPoolFixedSmall/100000-24 | 8920342 | 124.9 | 250.5 | 903.6 | 1195 | 653.0 | -291.0 | 122 | 0 |
FixedSmall uses 15% of the steady-state, and runs about 4% faster (though this is probably within the margin of error), and has no spikes under demand, so long as large packets are rare. Now that’s optimization.
Average Memory Use:
This means we can go down from 256GiB machines to 32GiB machines, which are much, much, much, cheaper - about 10% of the price on average.
cableshow: final results: Problems
syncPoolAlwaysAllocuses more ‘cold’ memory thanSimplePool. Why?
Long story short: performance optimization pays. My story of saving $300k/year here is striking but not extreme. I know engineers who have been able to save millions with similar techniques.
This article is easily longer than anything else than I’ve ever written and it still feels like I’m only scratching the surface - I barely talked about memory or hardware, had to leave out large sections about metrics and I/O, and couldn’t even manage to sneak in a line of assembler. Still, I think we covered a lot of ground. This was great fun to write and I hope you enjoyed reading it. If you’ve made it this far, you’ve got the makings of a real systems programmer. Hold your head up proud and remember: performance patters - don’t let anyone tell you it doesn’t.
swtalmudPart of the reason why this article has taken so long is I’ve been hard at work at a very personal project, also taking the form of an article on this website. It’s called “Software Talmud: The Anatomy of Automation” and I’d really appreciate it if you checked it out.
The following are the scraps of a segment on memory allocations and heap escapes. I couldn’t quite get it to come together as a section on it’s own, but I think it’s pretty illustrative as code, so I cleaned up the comments. A run of the benchmarks follows, followed by the code.
1#!/usr/bin/env bash
2go test -bench . -trimpath -benchmem ./articles/startingsystems/bench/escape
1#!/usr/bin/env bash
2cat ./articles/startingsystems/bench/escape/escape_test.go
1package escape
2
3import (
4 "log"
5 "runtime"
6 "strconv"
7 "strings"
8 "testing"
9)
10
11func init() {
12 log.Print(`// when benchmarking, it's important to measure the right thing.
13// try and eliminate as many confounding factors as possible.
14// for each benchmark, we'll allocate a big slab of memory up front before we start tracking.`)
15}
16
17func initbench(b *testing.B, comment string) (buf []byte) {
18 b.Logf("\n%s\n\t%s\n", b.Name(), strings.ReplaceAll(comment, "\n", "\n\t"))
19 b.Helper()
20 b.ReportAllocs()
21 buf = make([]byte, 0, GiB)
22 b.ResetTimer()
23 return buf
24}
25
26func BenchmarkAppendIntBaseline(b *testing.B) {
27 dst := initbench(b, `// where possible, always benchmark in comparison to a reference implementation.
28// here, we'll use ordinary `+"`strconv.AppendInt`")
29 for n := 0; b.Loop(); n++ {
30 dst = strconv.AppendInt(dst, int64(n), 10)
31 }
32}
33
34func BenchmarkAppendBuf(b *testing.B) {
35 dst := initbench(b, `// let's build a deliberately less efficient version to get some ideas about optimizing memory usage.
36// in this version, we'll first allocate the formatted integer in it's own buffer, then append it to our destination.
37// go's escape analyzer is good enough to realize that we don't actually use the intermediate buffer, so it never escapes at all.`)
38
39 for n := 0; b.Loop(); n++ {
40 // allocate an intermediate buffer and stick the integer in it
41 p := strconv.AppendInt(nil, int64(n), 10)
42
43 // now append that to dst.
44 dst = append(dst, p...)
45
46 // at this point, p will no longer be touched by anything else in the program,
47 // so the compiler can avoid most heap allocations here by reusing the same space for the contents of p.
48 }
49}
50
51func BenchmarkAppendBufLeak(b *testing.B) {
52 dst := initbench(b, `
53 // if for some reason p DID live outside this loop, that optimization would no longer be valid.
54 // we can artificially provoke this with`+"`runtime.KeepAlive`"+`.
55 // let's build a deliberately less efficient version to get some ideas about optimizing memory usage.
56 // in this version, we'll first allocate the formatted integer in it's own buffer, then append it to our destination.
57 // go's escape analyzer is good enough to realize that we don't actually use the intermediate buffer, so it never escapes at all.
58`)
59 for n := 0; b.Loop(); n++ {
60 // allocate an intermediate buffer and stick the integer in it
61 p := strconv.AppendInt(nil, int64(n), 10)
62
63 // now append that to dst.
64 dst = append(dst, p...)
65
66 defer runtime.KeepAlive(p)
67
68 }
69 b.Log(`all versions of p are still 'alive', so the compiler had to allocate afresh for each.`)
70}
71
72func BenchmarkAppendPreAllocNoEscape(b *testing.B) {
73 dst := initbench(b, `// even if the compiler can re-use that space, it still has to allocate SOME space on the heap b/c it doesn't have an
74// idea how big the result will be.
75// We can help the compiler out by picking a reasonable number ahead of time
76// Go benchmarks run at most 100000000 times, which is 9 digits.
77// This implementation is nearly as fast as the original: memcopies are incredibly fast even when they're pointless.`)
78 for n := 0; b.Loop(); n++ {
79 p := strconv.AppendInt(make([]byte, 0, 10), int64(n), 10)
80 dst = append(dst, p...)
81 }
82}
83
84func BenchmarkAppendPreAllocEscape(b *testing.B) {
85 dst := initbench(b, `// On the other hand, if that memory escapes to the heap, our pre-allocation helps significantly less.`)
86 for n := 0; b.Loop(); n++ {
87 p := strconv.AppendInt(make([]byte, 0, 10), int64(n), 10)
88 dst = append(dst, p...)
89 defer runtime.KeepAlive(p)
90 }
91}
92
93func BenchmarkAppendIntStrNoEscape(b *testing.B) {
94 dst := initbench(b, `Even allocating a bunch of small strings can be cleverly inlined in simple situations...`)
95 for n := 0; b.Loop(); n++ {
96 s := strconv.Itoa(n)
97 dst = append(dst, s...)
98 }
99}
100
101func BenchmarkAppendIntStrEscape(b *testing.B) {
102 dst := initbench(b, "// but if those strings escape it's the worst we've seen yet")
103 for n := 0; b.Loop(); n++ {
104 s := strconv.Itoa(n)
105 dst = append(dst, s...)
106 defer runtime.KeepAlive(s)
107
108 }
109}
110
111func BenchmarkAppendIntNoInline(b *testing.B) {
112 dst := initbench(b, "// function calls take time. Individual calls are neglitgible, but big chains of indirections can add up.")
113
114 for n := 0; b.Loop(); n++ {
115 dst = noinlineappend(dst, int64(n), 10)
116 }
117}
118
119// the 'go:noinline' compiler directive SUGGESTS not inlining the code.
120//
121//go:noinline
122func noinlineappend(dst []byte, n int64, base int) []byte {
123 return strconv.AppendInt(dst, n, base)
124}
125
12026/04/23 21:25:16 // when benchmarking, it's important to measure the right thing.
2// try and eliminate as many confounding factors as possible.
3// for each benchmark, we'll allocate a big slab of memory up front before we start tracking.
4goos: darwin
5goarch: arm64
6pkg: gitlab.com/efronlicht/blog/articles/startingsystems/bench/escape
7cpu: Apple M2
8BenchmarkAppendIntBaseline-8 100000000 11.17 ns/op 0 B/op 0 allocs/op
9--- BENCH: BenchmarkAppendIntBaseline-8
10 escape_test.go:18:
11 BenchmarkAppendIntBaseline
12 // where possible, always benchmark in comparison to a reference implementation.
13 // here, we'll use ordinary `strconv.AppendInt`
14BenchmarkAppendBuf-8 56065813 23.24 ns/op 8 B/op 1 allocs/op
15--- BENCH: BenchmarkAppendBuf-8
16 escape_test.go:18:
17 BenchmarkAppendBuf
18 // let's build a deliberately less efficient version to get some ideas about optimizing memory usage.
19 // in this version, we'll first allocate the formatted integer in it's own buffer, then append it to our destination.
20 // go's escape analyzer is good enough to realize that we don't actually use the intermediate buffer, so it never escapes at all.
21BenchmarkAppendBufLeak-8 14613769 127.3 ns/op 104 B/op 4 allocs/op
22--- BENCH: BenchmarkAppendBufLeak-8
23 escape_test.go:18:
24 BenchmarkAppendBufLeak
25
26 // if for some reason p DID live outside this loop, that optimization would no longer be valid.
27 // we can artificially provoke this with`runtime.KeepAlive`.
28 // let's build a deliberately less efficient version to get some ideas about optimizing memory usage.
29 // in this version, we'll first allocate the formatted integer in it's own buffer, then append it to our destination.
30 // go's escape analyzer is good enough to realize that we don't actually use the intermediate buffer, so it never escapes at all.
31
32 escape_test.go:69: all versions of p are still 'alive', so the compiler had to allocate afresh for each.
33 ... [output truncated]
34BenchmarkAppendPreAllocNoEscape-8 100000000 10.60 ns/op 0 B/op 0 allocs/op
35--- BENCH: BenchmarkAppendPreAllocNoEscape-8
36 escape_test.go:18:
37 BenchmarkAppendPreAllocNoEscape
38 // even if the compiler can re-use that space, it still has to allocate SOME space on the heap b/c it doesn't have an
39 // idea how big the result will be.
40 // We can help the compiler out by picking a reasonable number ahead of time
41 // Go benchmarks run at most 100000000 times, which is 9 digits.
42 // This implementation is nearly as fast as the original: memcopies are incredibly fast even when they're pointless.
43BenchmarkAppendPreAllocEscape-8 14656249 122.6 ns/op 111 B/op 3 allocs/op
44--- BENCH: BenchmarkAppendPreAllocEscape-8
45 escape_test.go:18:
46 BenchmarkAppendPreAllocEscape
47 // On the other hand, if that memory escapes to the heap, our pre-allocation helps significantly less.
48BenchmarkAppendIntStrNoEscape-8 65944182 22.85 ns/op 7 B/op 0 allocs/op
49--- BENCH: BenchmarkAppendIntStrNoEscape-8
50 escape_test.go:18:
51 BenchmarkAppendIntStrNoEscape
52 Even allocating a bunch of small strings can be cleverly inlined in simple situations...
53BenchmarkAppendIntStrEscape-8 13357376 119.7 ns/op 95 B/op 3 allocs/op
54--- BENCH: BenchmarkAppendIntStrEscape-8
55 escape_test.go:18:
56 BenchmarkAppendIntStrEscape
57 // but if those strings escape it's the worst we've seen yet
58BenchmarkAppendIntNoInline-8 100000000 10.43 ns/op 0 B/op 0 allocs/op
59--- BENCH: BenchmarkAppendIntNoInline-8
60 escape_test.go:18:
61 BenchmarkAppendIntNoInline
62 // function calls take time. Individual calls are neglitgible, but big chains of indirections can add up.
63PASS
64ok gitlab.com/efronlicht/blog/articles/startingsystems/bench/escape 14.518s
