Integrating Zoom with Ruby on Rails: Session Tracking, Analytics & System Design

Problem: Allow users to join live sessions from the platform and track Attendance and Session duration.

Primary requirements:

• We should be able to track who joined the session

• How long each participant stayed on the call

We will use Zoom meeting API to make sure each user gets a unique URL through which they will join the session and at the same time Zoom will be able to keep track of who joined and for how long/ how many times.

Mentees: Users who will join the session
Captain: Mentors taking the session (Responsible for starting the session)
Element: Object holding the information about the topic of the live session
Subscription: Subscription of users to verify they are authorized to access the class

• On Zoom, Create meeting with registration enabled so that only authorized users can join the call. Optionally we can create a meeting using the API as well.

• Add users as participants to this meeting and save the join meeting url(unique to each user)

• Make a call to Reports API to collect attendance and duration information for each mentee

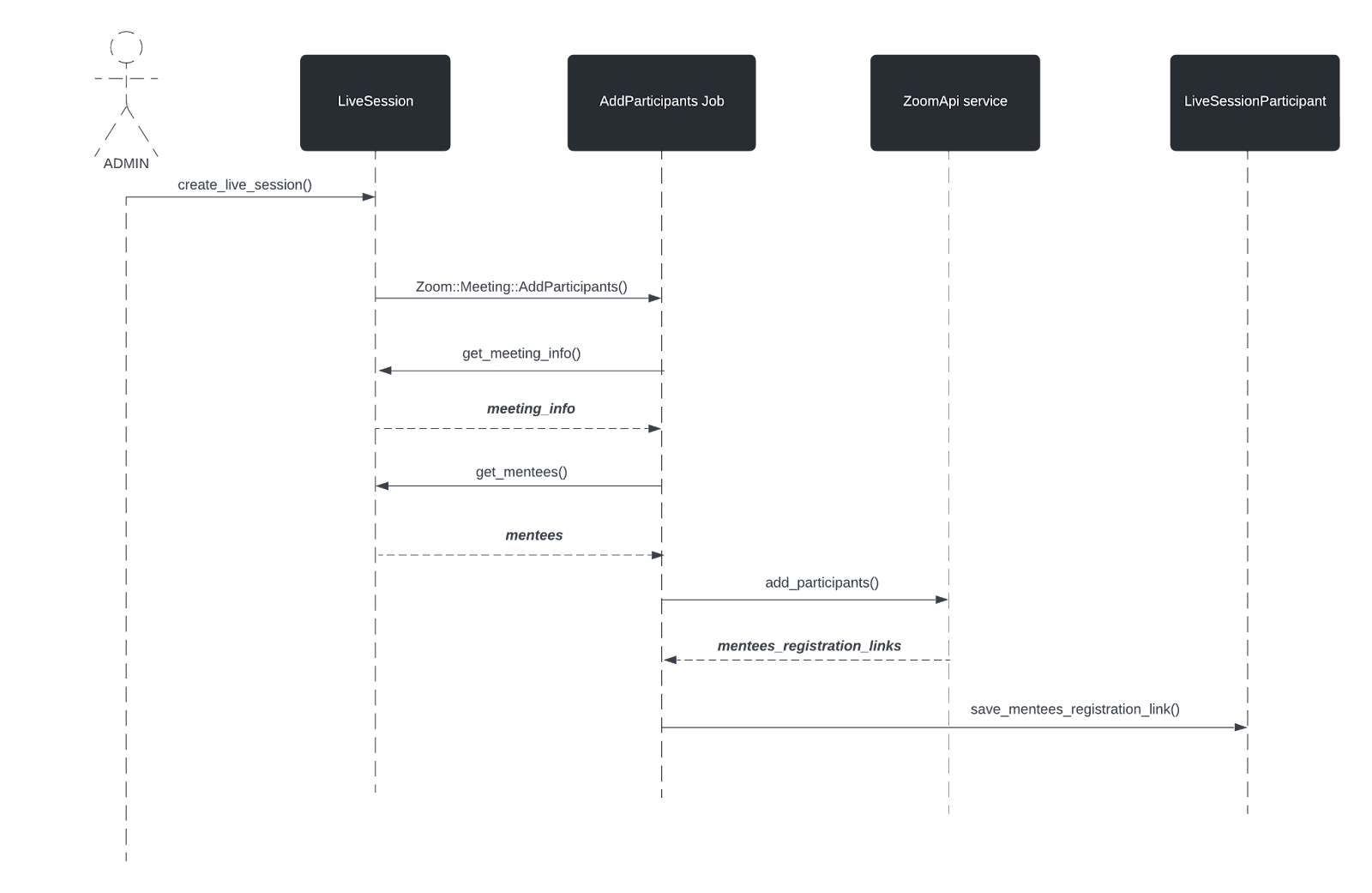

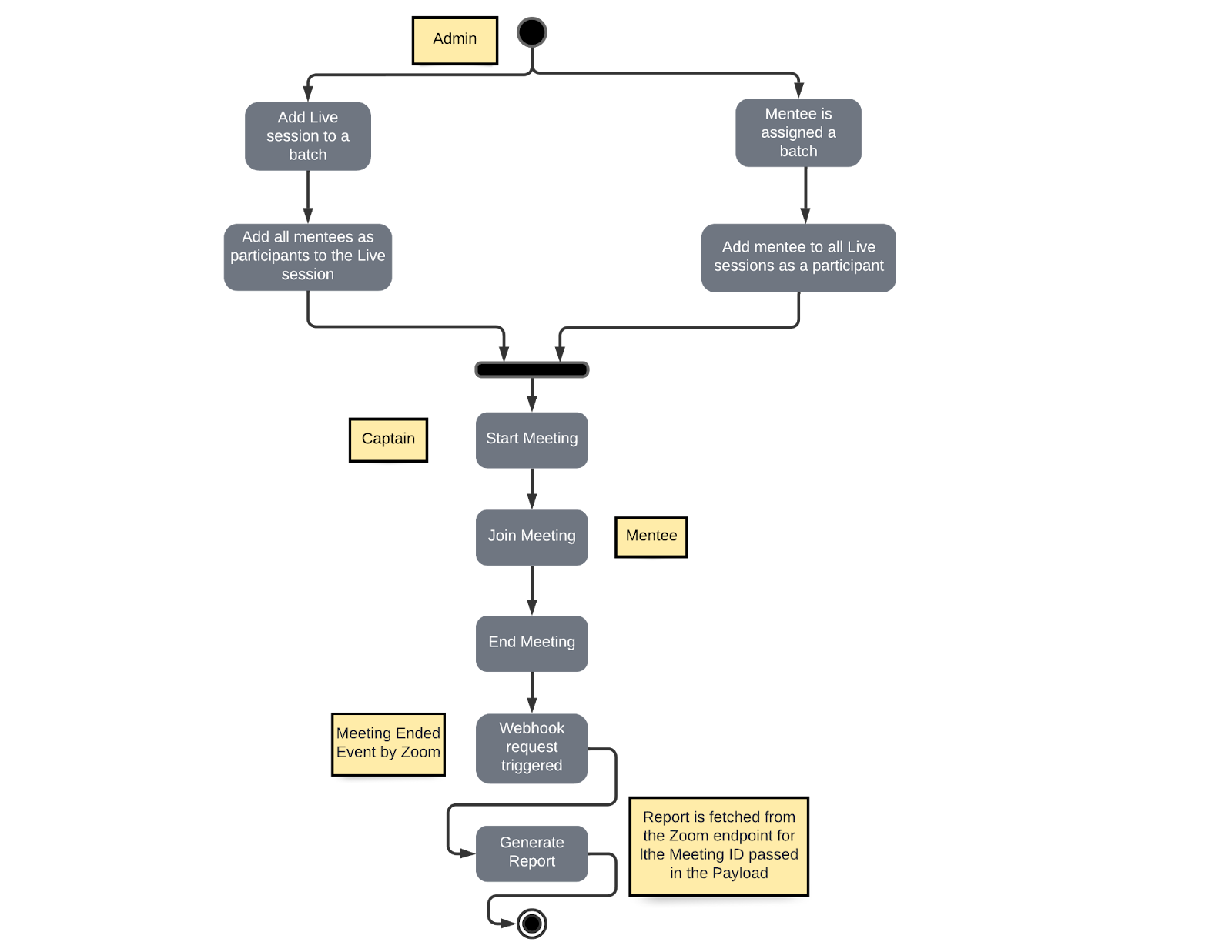

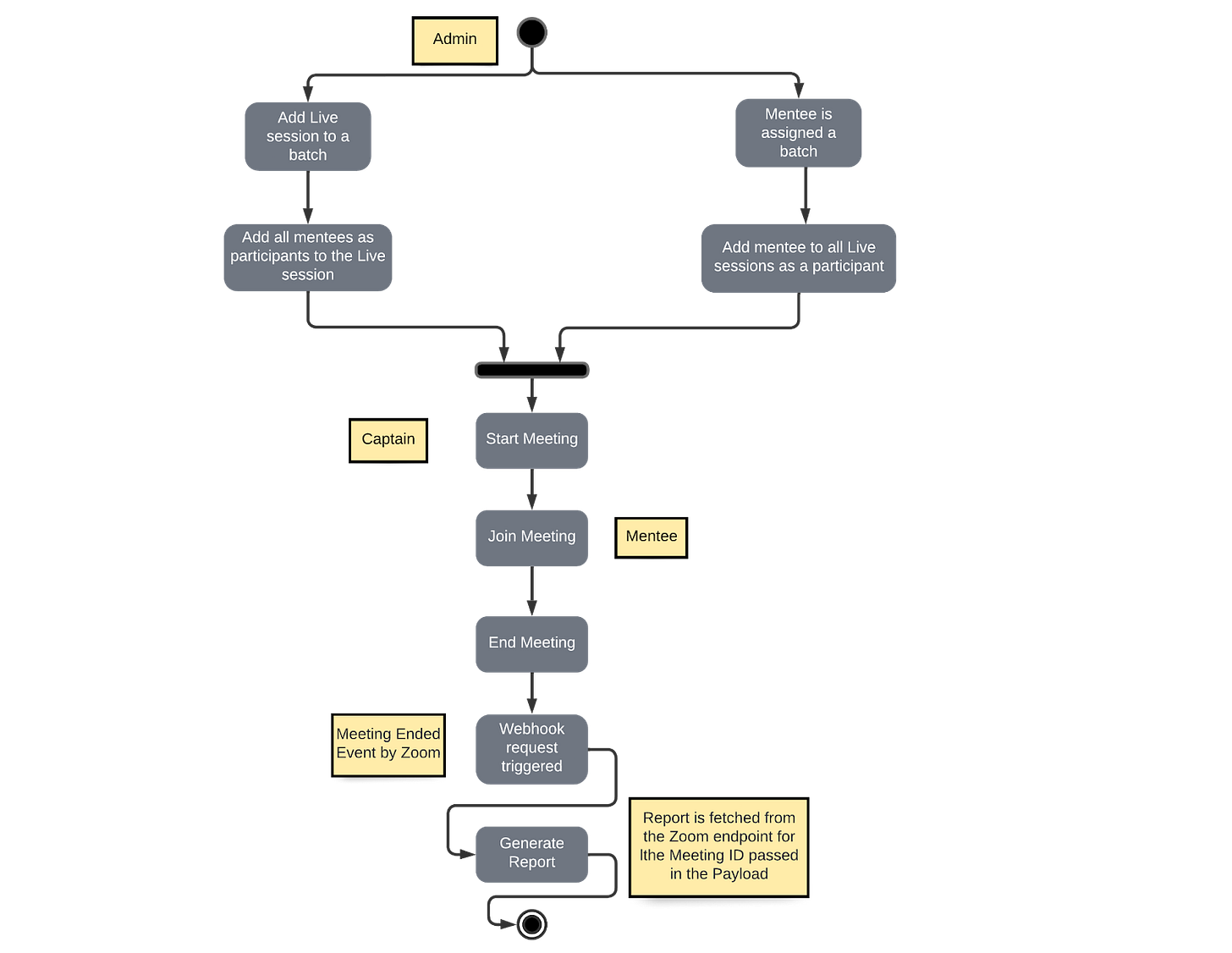

• Admin adds a Live session to the batch

  • Mentees are added as participants to this meeting

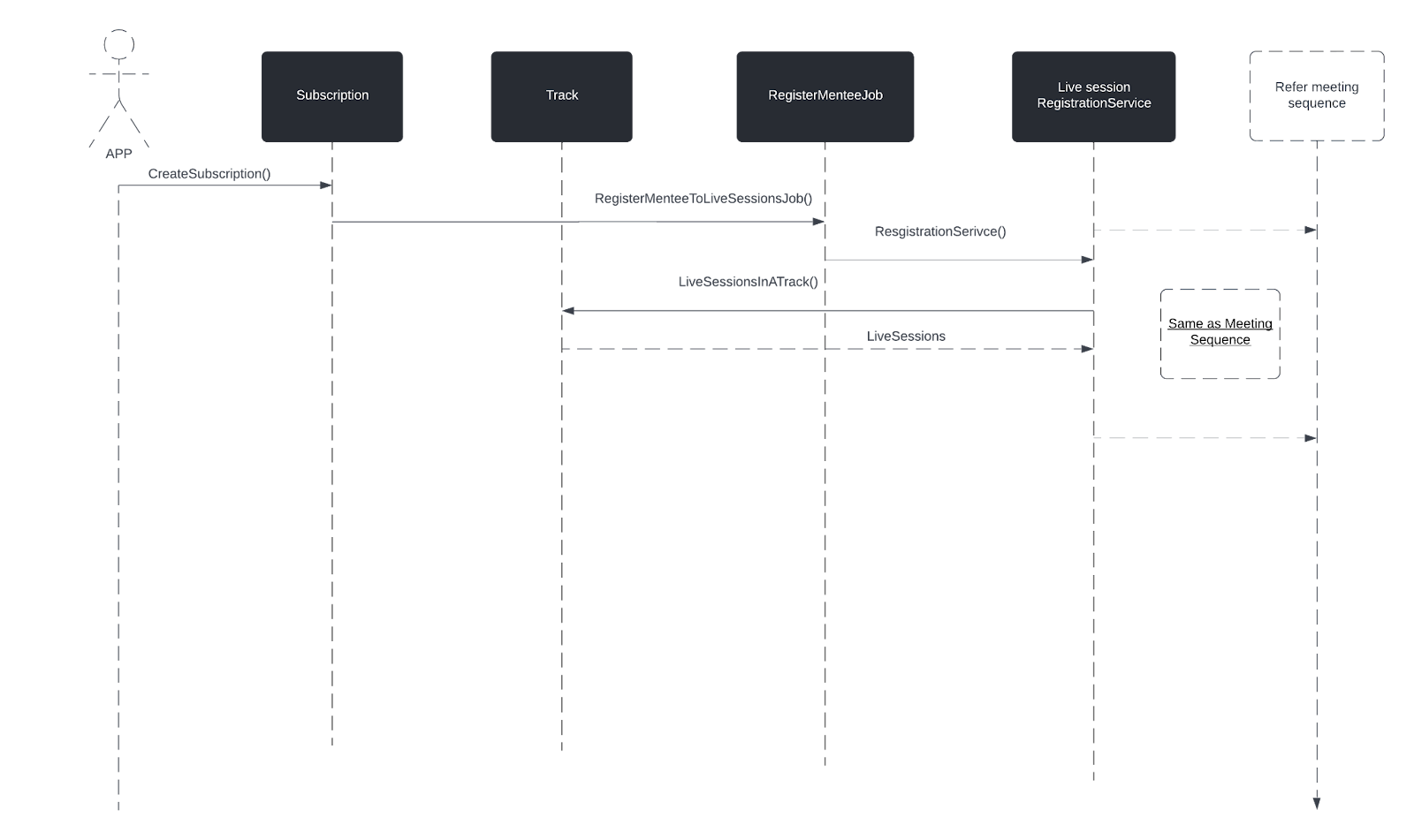

• Mentee is added to the batch

  • Mentee is added as participants to all the exiting Live session

• Captain starts the meeting and Mentees join the meeting with their uniq url

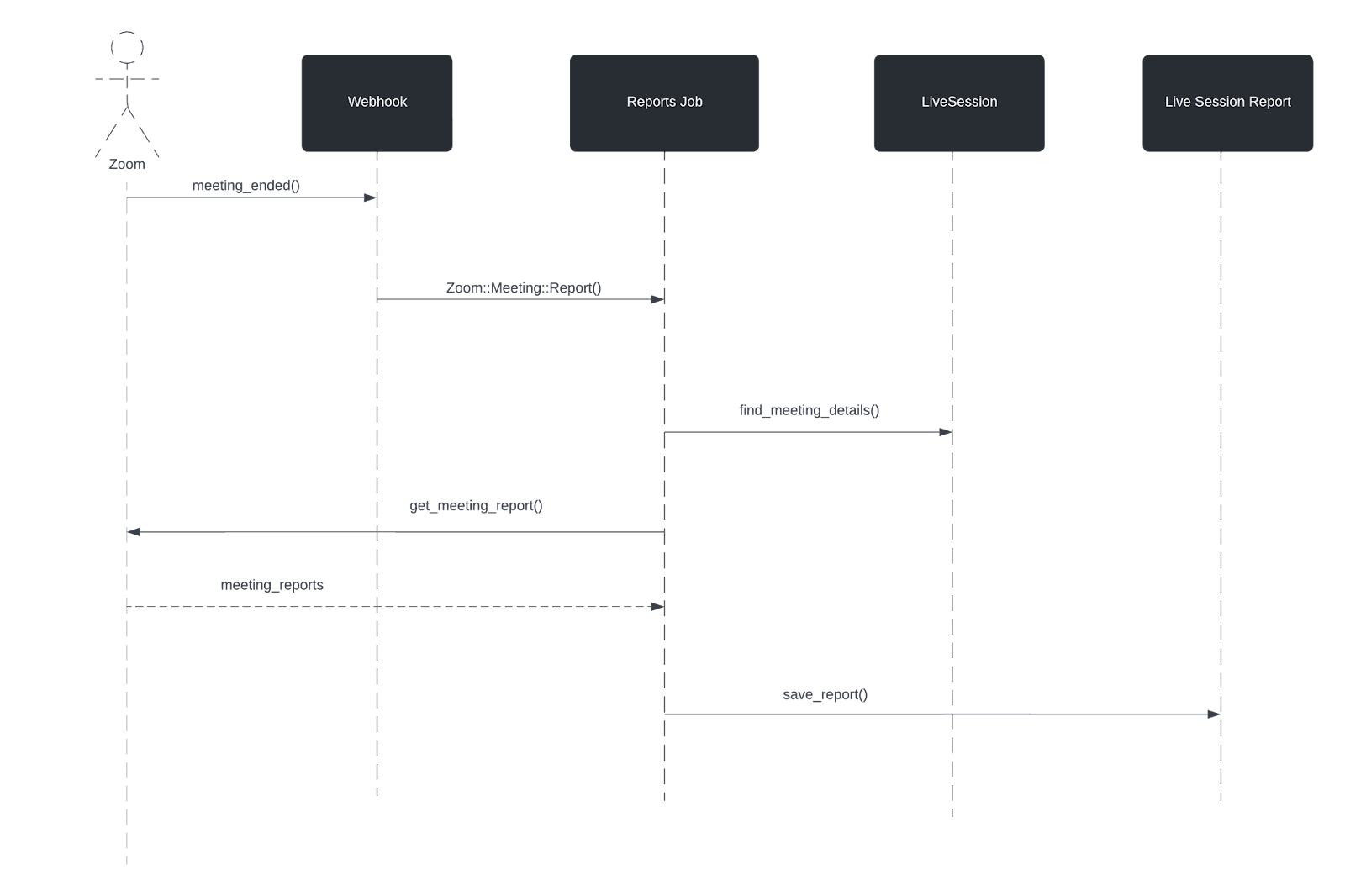

• Once the meeting is over, Zoom sends the request to our Webhook endpoint with the meeting details

• Report is fetched from the Zoom API endpoint

• Report is saved in the DB

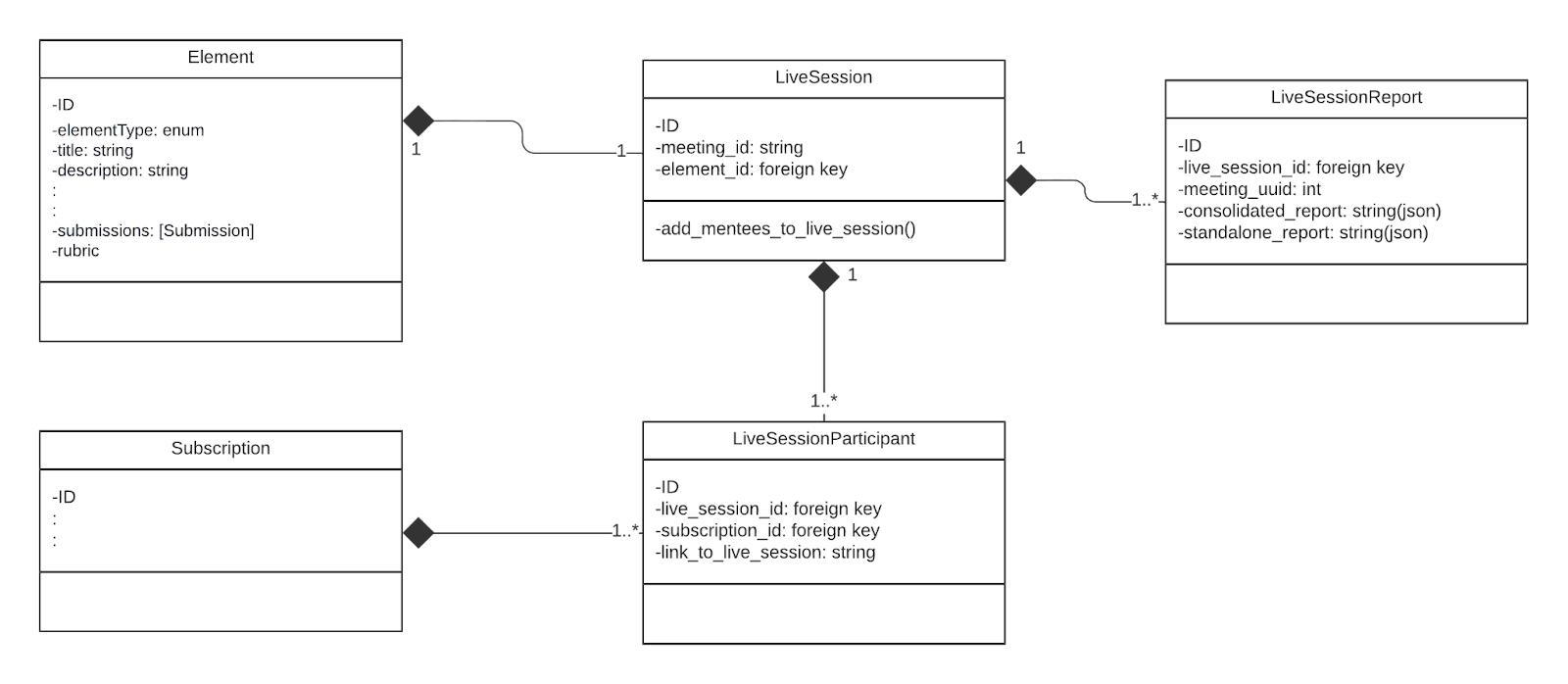

Models/Modules: Element, LiveSession, LiveSessionParticipant, LiveSessionReport, Subscription, ZoomApi, Zoom::Meeting

Callbacks/Methods: ZoomAPI::Meeting::AddParticipants(), ZoomAPI::Meeting::Report()

Webhook/controllers: Webhooks::Zoom::MeetingsController

Background jobs: Zoom::Meeting::AddPaticipantsJob(), Zoom::Meeting::ReportsJob()

Problem:

• Mentees should be able to join the meeting from app

  • Video call should happen within the app

• Using Zoom meeting sdk (client view)

• As per the documentation, in order to initiate the video call through Zoom SDK frontend needs to pass some parameters listed below:

Here is the list of variables you need access to before proceeding:

1. signatureEndpoint: The endpoint url that returns a signature. Get a signature endpoint here.

2. sdkKey: your Zoom SDK App Key. You can get yours here.

3. meetingNumber: the Zoom Meeting or webinar number.

4. role: 0 to specify participant, 1 to specify host.

5. leaveUrl: the url the user is taken to once the meeting is over.

6. userName: a name for the user joining / starting the meeting / webinar.

7. userEmail: The email of the user starting or joining the meeting / webinar. (Required for Webinar, optional for Meeting, required for meeting and webinar if registration is required.)

8. passWord: meeting password. Leave as an empty string if the meeting does not require a password.

9. registrantToken: This is required if your meeting or webinar requires registration.

10. customerKey: This is to pass any meta information that could be useful to the consumer application at the time of accessing the report.

UI Changes

• Integrate Zoom sdk (client view)

Sample code for the Zoom init() method

• UI should prepare for fallback as well(In case of an error at the time of calling init() or join())

  • In this case we will redirect the user to the link returned in the response

Services

• At the time of saving registration details, service should extract information such as

  • registrationToken

  • passcode/password

  • meetingNumber

  • userName

  • userEmail

  • role

Admin Panel

• Create meeting action should create a record in LiveSession

  • The meeting_id, start_time and end_time should be saved in the LiveSession table while the session_type itself will be saved in the Element table. So, when the Admin submits the form, backend should do the following:

    • Create an Element with the selected session_type

    • Refer the id of the newly created Element to create a LiveSession with attributes meeting_id, start_time, end_time

Graphql API

• Query to return meeting details

TESTING:

Graphql query (for reference)

Response:

• Setup/Deploy signature server on Render

• Endpoint to generate signature

• Backend will use this endpoint to generate signatures. (This is to prevent leaking any sensitive keys/secrets on the UI)

GD!!
